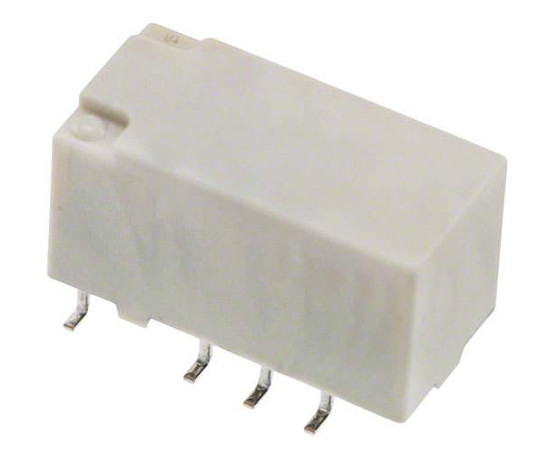

TX2SA-12V signal relay

Symbol Micros: P TX2SA-12V

111410

P TX2SA-12V

Contractor Symbol:

Case : Rys.TX2SA

Datasheet

Technical drawing Add to favourites

2A; 12VDC; DPDT; 140mW; 15 x 7,4 x 8,2mm PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	220VDC
Coil power:	140mW

All parameters

Manufacturer:: Panasonic Manufacturer part number: TX2SA-12V RoHS Case style: Rys.TX2SA Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	1,8480	1,5507	1,3784	1,2816	1,2320

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
40 Quantity (multiple: 1)

- +

Manufacturer:: Panasonic Manufacturer part number: TX2SA-12V Case style: Rys.TX2SA

External warehouse:

880 pcs.

Quantity of pcs.	80+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,0506

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	220VDC
Coil power:	140mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	15 x 7,4 x 8,2mm
Operating temperature (range):	-40°C ~ 85°C
