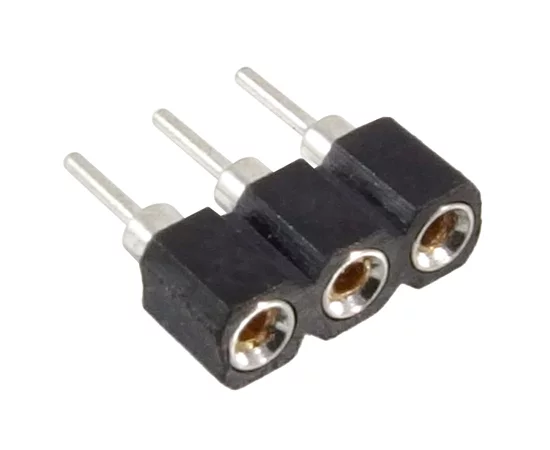

DS1002-01-1x3V13-JK CONNFLY Precision socket

Symbol Micros: P03SIP

108330

P03SIP

Contractor Symbol:

Case : Rys.P03SIP

Datasheet

Technical drawing Add to favourites

female; precise; 1x3pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.4mm, eqiv. SIP03

Parameters

Number of pins:	1x3
Height:	4,1mm
Mounting:	For printing, straight
Manufacturer:	CONNFLY
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1002-01-1x3V13-JK RoHS Case style: Rys.P03SIP

In stock:

794 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2105	0,0841	0,0489	0,0409	0,0383

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-01-1x3V13-JK Case style: Rys.P03SIP

External warehouse:

59500 pcs.

Quantity of pcs.	1500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0383

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x3
Height:	4,1mm
Mounting:	For printing, straight
Manufacturer:	CONNFLY
Terminal pitch:	2,54mm
