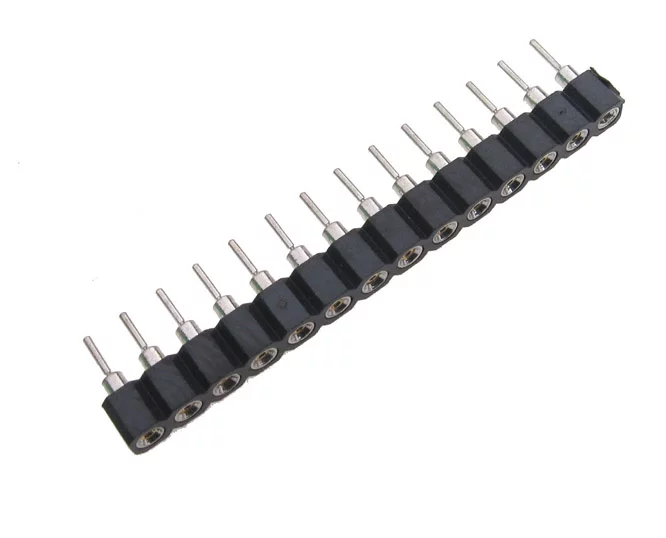

DS1002-01-1x14V13-JK CONNFLY Precision socket

Symbol Micros: P14SIP

21073

P14SIP

Contractor Symbol:

Case : Rys.P14SIP

Datasheet

Technical drawing Add to favourites

female; precise; 1x14pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.4mm, eqiv. SIP14

Parameters

Number of pins:	1x14
Height [m]:	4,1mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-01-1x14V13-JK Case style: Rys.P14SIP

External warehouse:

13100 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1232

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	1x14
Height [m]:	4,1mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT
