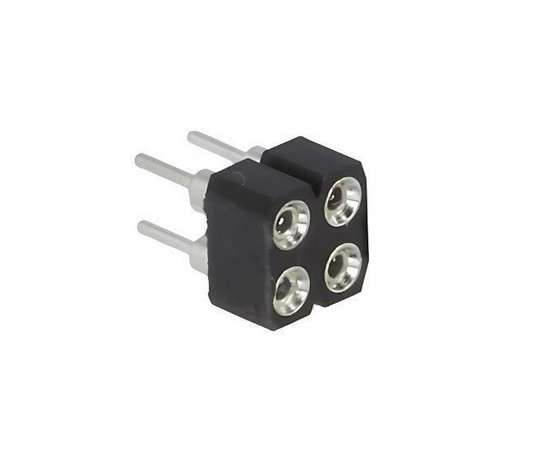

DS1002-01-2x2V13-JK CONNFLY Precision socket

Symbol Micros: P2x02SIP

108336

P2x02SIP

Contractor Symbol:

Case : Rys.P2x02SIP

Datasheet

Technical drawing Add to favourites

precise pin header 2x2pin, straight, r.2.54mm, for PCB turned contacts, gold plated, h=7.4mm

Parameters

Number of pins:	2x2
Height [mm]:	4,1mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x2
Height [mm]:	4,1mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm
Mounting:	THT
