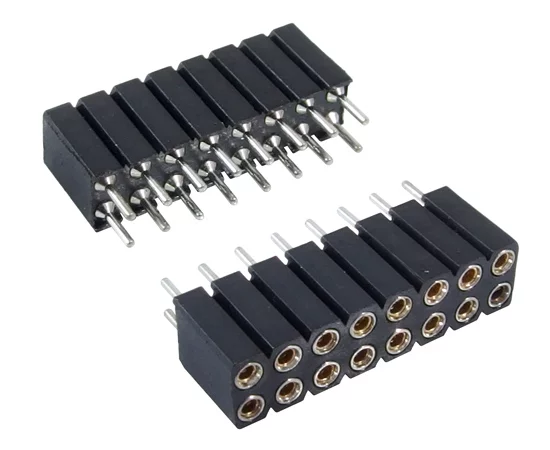

Precision socket 16pin CONNECTAR

Symbol Micros: P2x08SIP7

110684

P2x08SIP7

Contractor Symbol:

Case : Rys.P2x08SIP7

Datasheet

Technical drawing Add to favourites

female; precise; 2x8pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.0/10.0mm, eqiv. ZL307-2X8

Parameters

Number of pins:	2x8
Height [m]:	7,0mm
Manufacturer:	CONNECTAR
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-03-2x08-131 RoHS Case style: Rys.P2x08SIP7 Datasheet

In stock:

150 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	1,1919	0,7891	0,6289	0,5771	0,5677

Add to comparison tool Add inquiry (RFQ)

Packaging:
150 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-03-2x8131 Case style: Rys.P2x08SIP7

External warehouse:

820 pcs.

Quantity of pcs.	150+ (Please wait for the order confirmation)
Net price (EUR)	0,5677

Add to comparison tool Add inquiry (RFQ)

Packaging:
150

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-08-01

Quantity of pcs.: 400

• Parameters

Number of pins:	2x8
Height [m]:	7,0mm
Manufacturer:	CONNECTAR
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT
