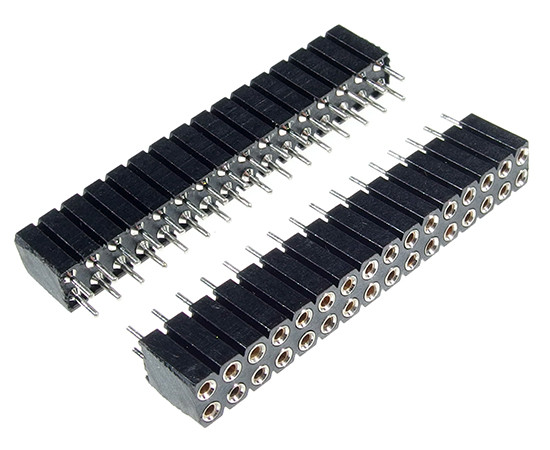

DS1002-03-2x16131 CONNFLY Precision socket

Symbol Micros: P2x16SIP7

110686

P2x16SIP7

Contractor Symbol:

Case : Rys.P2x16SIP7

Datasheet

Technical drawing Add to favourites

female; precise; 2x16pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.0/10.0mm, eqiv. ZL307-2X16

Parameters

Number of pins:	2x16
Height [m]:	7,0mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-03-2x16-131 RoHS Case style: Rys.P2x16SIP7 Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,8778	1,4980	1,2810	1,1512	1,1041

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-03-2x16131 Case style: Rys.P2x16SIP7

External warehouse:

1930 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	1,1041

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-05-21

Quantity of pcs.: 150

• Parameters

Number of pins:	2x16
Height [m]:	7,0mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT
