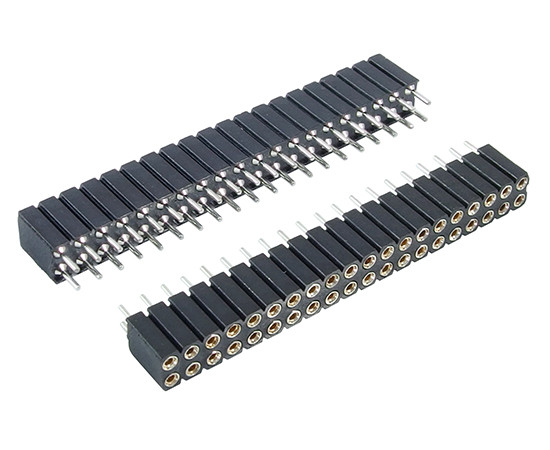

CH-254-FHR-2-20-S-100-D CONNECTAR Precision socket

Symbol Micros: P2x20SIP7

110687

P2x20SIP7

Contractor Symbol:

Case : Rys.P2x20SIP7

Datasheet

Add to favourites

female; precise; 2x20pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.0/10.0mm, eqiv. ZL307-2X20

Parameters

Number of pins:	2x20
Height [m]:	7,0mm
Manufacturer:	CONNECTAR
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number:   Case style: Rys.P2x20SIP7 Datasheet

In stock:

300 pcs.

Quantity of pcs.	1+	5+	25+	150+	300+
Net price (EUR)	1,7892	1,3266	1,1435	1,0660	1,0519

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/150 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.P2x20SIP7 Datasheet

In stock:

187 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,8643	1,5638	1,3900	1,2820	1,2421

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-20

Quantity of pcs.: 1500

• Parameters

Number of pins:	2x20
Height [m]:	7,0mm
Manufacturer:	CONNECTAR
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT
