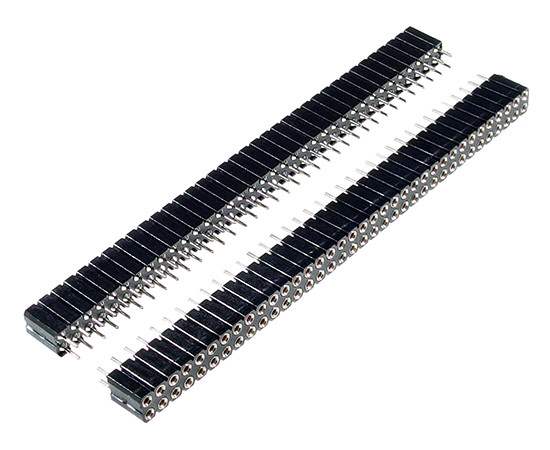

DS1002-03-2x36-131 CONNFLY Precision socket

Symbol Micros: P2x36SIP7

110688

P2x36SIP7

Contractor Symbol:

Case : Rys.P2x36SIP7

Datasheet

Technical drawing Add to favourites

female; precise; 2x36pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.0/10.0mm, eqiv. ZL307-2X36

Parameters

Number of pins:	2x36
Height [m]:	7,0mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-03-2*36131 RoHS Case style: Rys.P2x36SIP7 Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	3,4572	3,0834	2,8605	2,7282	2,6585

Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-03-2x36131 Case style: Rys.P2x36SIP7

External warehouse:

955 pcs.

Quantity of pcs.	40+ (Please wait for the order confirmation)
Net price (EUR)	2,1709

Add to comparison tool Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	2x36
Height [m]:	7,0mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Mounting:	THT
