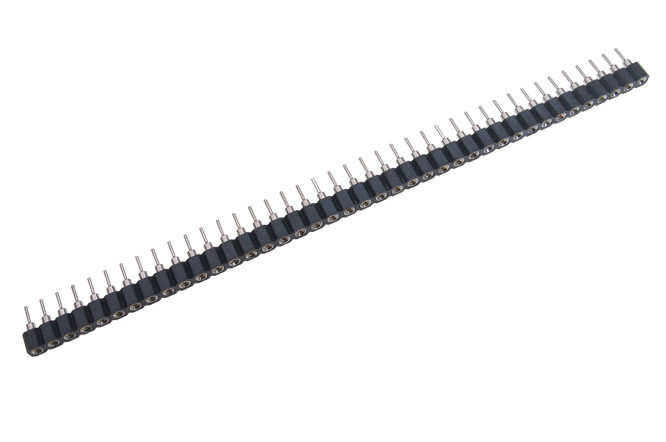

DS1002-01-1x40V13-JK CONNFLY Precision socket

Symbol Micros: P40SIP

16801

P40SIP

Contractor Symbol:

Case : Rys.P40SIP

Datasheet

Technical drawing Add to favourites

female; precise; 1x40pin, straight, pitch: 2.54mm, THT; turned contacts, round pins; gold plated, h=7.4mm, eqiv. SIP40

Parameters

Number of pins:	1x40
Height [mm]:	4,1mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm
Mounting:	THT

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-01-1x40V13-JK RoHS Case style: Rys.P40SIP Datasheet

In stock:

770 pcs.

Quantity of pcs.	2+	10+	30+	100+	300+
Net price (EUR)	0,6656	0,4171	0,3442	0,3054	0,2895

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/300/2400 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1002-01-1x40V13-JK Case style: Rys.P40SIP

External warehouse:

10970 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	0,3035

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-12

Quantity of pcs.: 1100

• Parameters

Number of pins:	1x40
Height [mm]:	4,1mm
Manufacturer:	CONNFLY
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm
Mounting:	THT
