PD MS-DIP/SO2

Symbol Micros: PD MS-DIP/SO2

20010

PD MS-DIP/SO2

Contractor Symbol:

Case : Rys.MS-DIP-SO2

Datasheet

Technical drawing Add to favourites

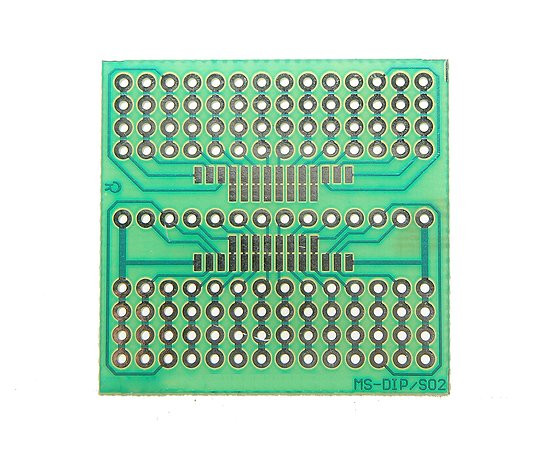

Universal PCB, single-sided for mounting SMD, transition SO8-SO28L to DIP8-DIP28. Hole diameter 1,0mm; pitch 2,54mm; dimensions 36x38mm.

Product description

Parameters

Dimensions:	36x38mm
Manufacturer:	Maj-Star Elektronik
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/SO2 RoHS Case style: Rys.MS-DIP-SO2 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	25+	50+	200+
Net price (EUR)	1,5725	1,1617	1,0011	0,9657	0,9256

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/50 Quantity (multiple: 1)

- +

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/SO2 RoHS Case style: Rys.MS-DIP-SO2 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,5725	1,2537	1,0743	0,9657	0,9256

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	36x38mm
Manufacturer:	Maj-Star Elektronik
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Single-sided, transitional SO8-SO28L to DIP8-DIP28

• Hole diameter: 1.0mm
• Pitch: 2.54mm
• Dimensions: 36x38mm
