PD MS-DIP/SO8

Symbol Micros: PD MS-DIP/SO8

20003

PD MS-DIP/SO8

Contractor Symbol:

Case : Rys.MS-DIP-SO8

Datasheet

Technical drawing Add to favourites

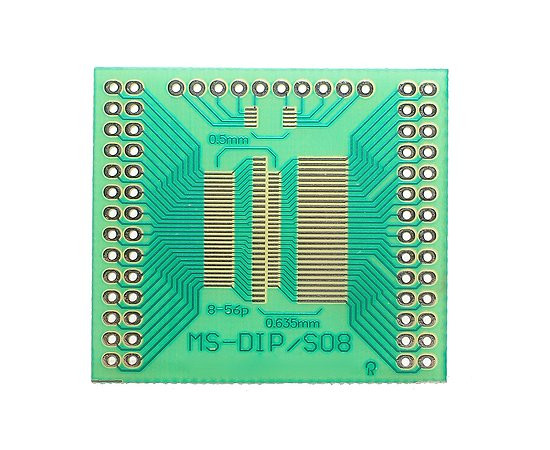

Universal PCB, single-sided for mounting SMD SSOP8-SSOP56, TSSOP8-TSSOP56. Hole diameter 1,0mm; pitch 2,54mm; dimensions 43x38mm; SMD: 0,635mm; 0,5mm.

Product description

Parameters

Dimensions:	43x38mm
Manufacturer:	Maj-Star Elektronik
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Dimensions:	43x38mm
Manufacturer:	Maj-Star Elektronik
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Single-sided for SMD mounting SSOP8-SSOP56, TSSOP8-TSSOP56.

• pitch 0.635mm; 0.5mm
• hole diameter 1.00mm/pitch 2.54mm
• dimensions 43x38mm.
