PD UM-01W

Symbol Micros: PD UM-01W

22567

PD UM-01W

Contractor Symbol:

Case : Rys.UM-01W

Datasheet

Add to favourites

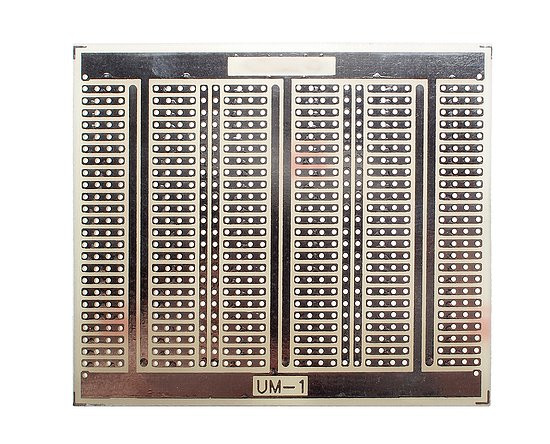

Universal PCB, single-sided for through-hole mounting UM-1W Hole diameter 1,0mm; pitch 2,54mm; dimensions 76x90mm.

Product description

Parameters

Dimensions:	76x90mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: CYFRONIKA Manufacturer part number: UM-1W RoHS Case style: Rys.UM-01W

In stock:

6 pcs.

Quantity of pcs.	1+	2+	3+	6+
Net price (EUR)	2,7435	2,3492	2,1768	1,9596

Add to comparison tool Add inquiry (RFQ)

Packaging:
6 Quantity (multiple: 1)

- +

Manufacturer:: CYFRONIKA Manufacturer part number: UM-1W RoHS Case style: Rys.UM-01W

In stock:

80 pcs.

Quantity of pcs.	1+	3+	10+	30+	90+
Net price (EUR)	2,7435	2,3586	2,1320	2,0210	1,9596

Add to comparison tool Add inquiry (RFQ)

Packaging:
90 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	76x90mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Printed Circuit Board, single-sided, universal for through-hole mounting UM-1W

Hole diameter: 1.0 mm
Pitch: 2.54 mm
Dimensions: 76 x 90 mm
