PD UM-20W

Symbol Micros: PD UM-20W

22414

PD UM-20W

Contractor Symbol:

Case : Rys.UM-20W

Datasheet

Add to favourites

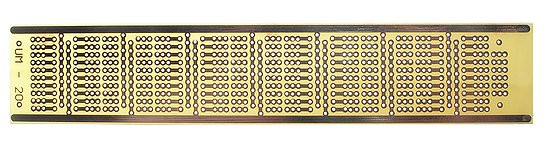

Universal PCB, single-sided for through-hole mounting UM-20W Hole diameter 1,0mm; pitch 2,54mm; dimensions 33x178mm.

Product description

Parameters

Dimensions:	33x178mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Dimensions:	33x178mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Single-sided, universal PCB for through-hole mounting UM-20W

Hole diameter: 1.0 mm
Pitch: 2.54 mm
Dimensions: 33 x 178 mm
