PD UM-27W

Symbol Micros: PD UM-27W

22572

PD UM-27W

Contractor Symbol:

Case : Rys.UM-27W

Datasheet

Add to favourites

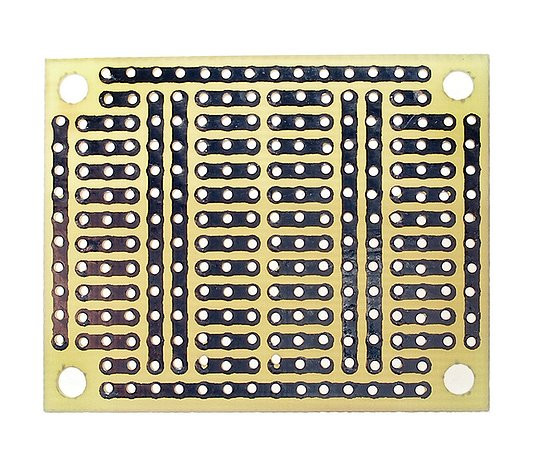

Universal PCB, single-sided for through-hole mounting UM-27W Hole diameter 1,0mm; pitch 2,54mm; dimensions 38x49mm.

Product description

Parameters

Dimensions:	38x49mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Dimensions:	38x49mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Single-sided, universal PCB for through-hole mounting UM-27W

Hole diameter: 1.0 mm
Pitch: 2.54 mm
Dimensions: 38 x 49 mm
