dsPIC30F6010A-30I/PF

Symbol Micros: PIC30f6010a30ipf

66052

PIC30f6010a30ipf

Contractor Symbol:

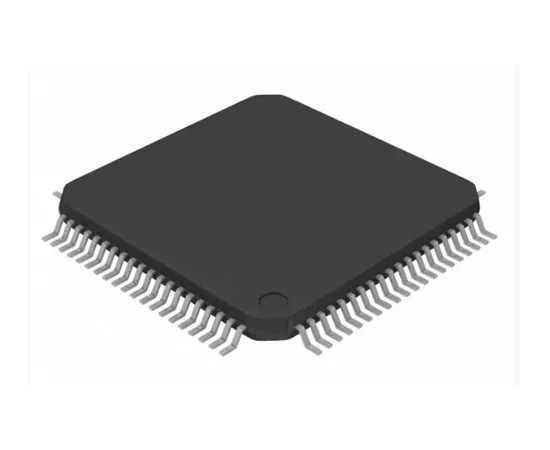

Case : TQFP80(14x14)

Datasheet

Technical drawing Add to favourites

16-bit MCU; 144kB-FLASH; 4kB-EEPROM; 8kB-SRAM; 68 I/O; 2,5V~5,5V; 30MHz; A/D; UART; SPI; TWI; CAN; -40°C ~ 85°C; Equivalent: DSPIC30F6010A-30I/PFA31; PIC30F6010A-30I;

Parameters

Case:	TQFP80(14x14)
Number of I/O:	68
RAM memory:	8kB
Supply voltage range:	2,5V~5,5V
FLASH memory:	144kB
Frequency:	30,000MHz
EEPROM memory:	4kB

All parameters

Manufacturer:: Microchip Manufacturer part number: DSPIC30F6010A-30I/PF Case style: TQFP80(14x14)

External warehouse:

84 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	16,0885

Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Case:	TQFP80(14x14)
Number of I/O:	68
RAM memory:	8kB
Supply voltage range:	2,5V~5,5V
FLASH memory:	144kB
Frequency:	30,000MHz
EEPROM memory:	4kB
Architecture:	16-bit
Operating temperature (range):	-40°C ~ 85°C
ADC:	YES
CAN interface:	YES
DAC:	NO
ETHERNET interface:	NO
Encryption:	NO
SPI interface:	YES
TWI (I2C) interface:	YES
UART/USART interface:	YES
USB interface:	NO
Manufacturer:	MICROCHIP
