3310C-001-502L Bourns

Symbol Micros: PO 3310C-001-502L

298584

PO 3310C-001-502L

Contractor Symbol:

Case : Rys.3310C

Datasheet

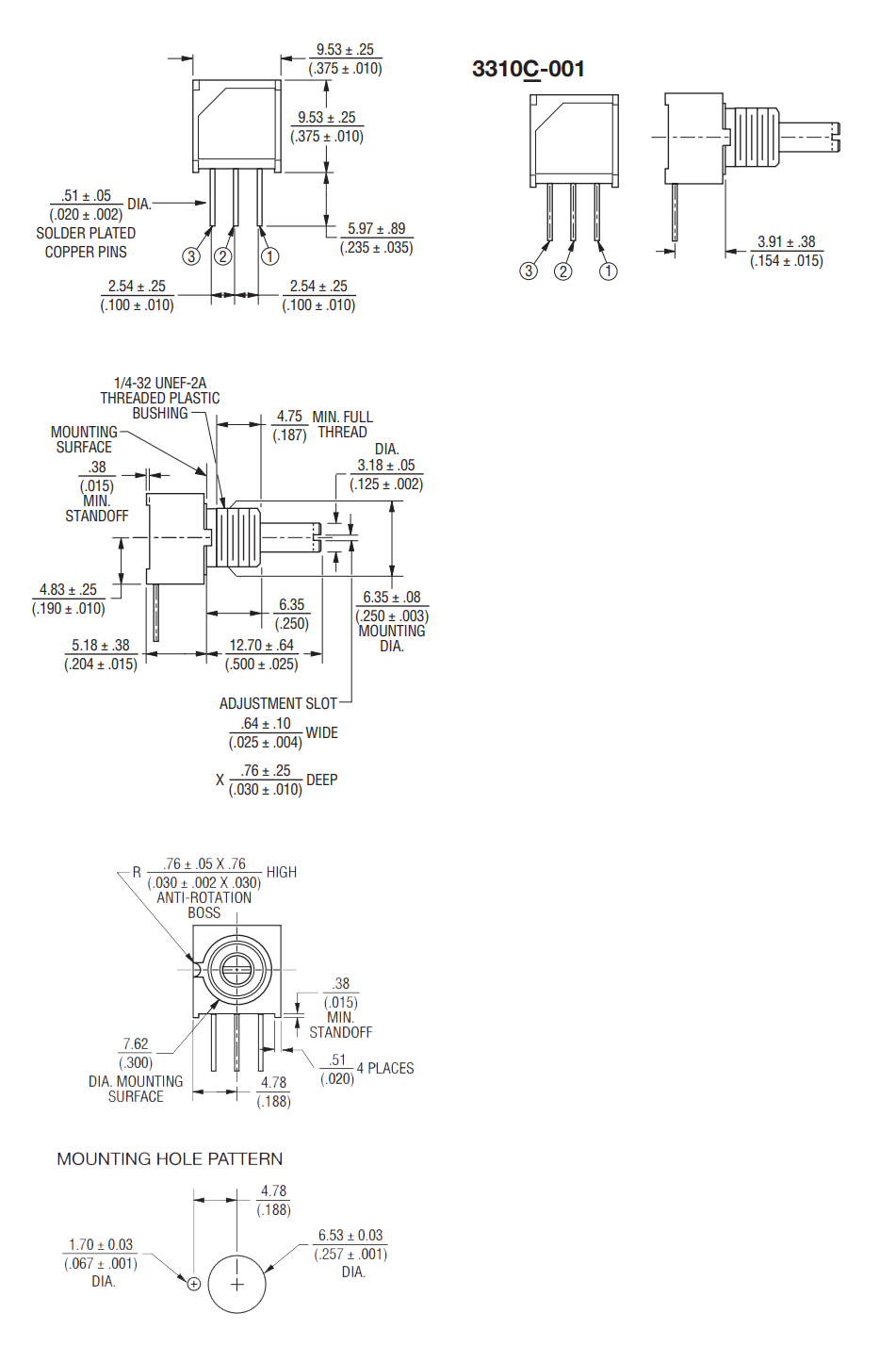

Technical drawing Add to favourites

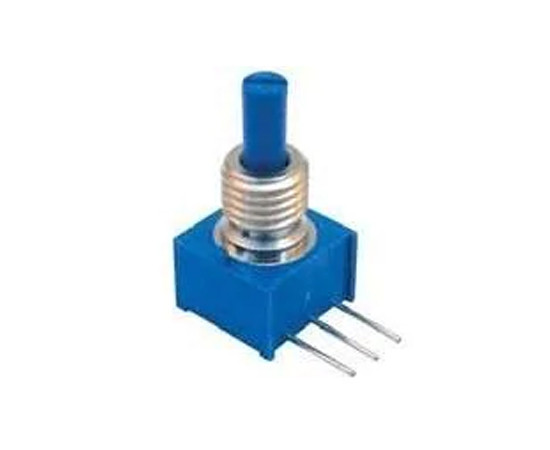

Single turn shaft potentiometer; 5kR; turns: 270°; THT; linear characteristics; 9.5x9.5x5.2mm; shaft diameter: 3.18mm; 0.25W; tol. 20%; operating temperature: -40°C÷125°C

Parameters

Resistance:	5,0kOhm
Dimensions:	9.5x9.5x5.2mm
Power:	0,25W
Operating temperature (range):	-40°C ~ 125°C
Manufacturer:	Bourns
Mounting:	THT
Tolerance:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	5,0kOhm
Dimensions:	9.5x9.5x5.2mm
Power:	0,25W
Operating temperature (range):	-40°C ~ 125°C
Manufacturer:	Bourns
Mounting:	THT
Tolerance:	20%
Characteristic:	Linear
Rotation angle:	270°
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
