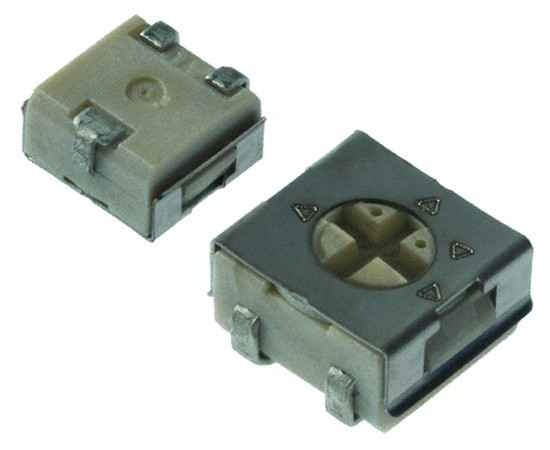

3314J-1-101E Bourns Trimmer

Symbol Micros: PO 3314j-1-0100

103295

PO 3314j-1-0100

Contractor Symbol:

Case : Rys.3314J-1

Datasheet

Technical drawing Add to favourites

Single turn cermet trimmer; 100R; rotation angle 240°; SMD; 3314J(Bourns)=23A(BI-Techn); straight slot; 4.5x4.5x2.55mm; power: 250mW; tolerance: ±20%; 100ppm/°C; operating temperature: -55÷125°C

Parameters

Resistance:	100 Ohm
Characteristic:	Linear
Dimensions:	4.5x4.5x2.55mm
Kind of potentiometer:	Single-turn
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	100 Ohm
Characteristic:	Linear
Dimensions:	4.5x4.5x2.55mm
Kind of potentiometer:	Single-turn
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Power:	0,25W
Temperature coefficient:	100ppm/°C
Tolerance:	20%
Type of potentiometer:	Mounting
