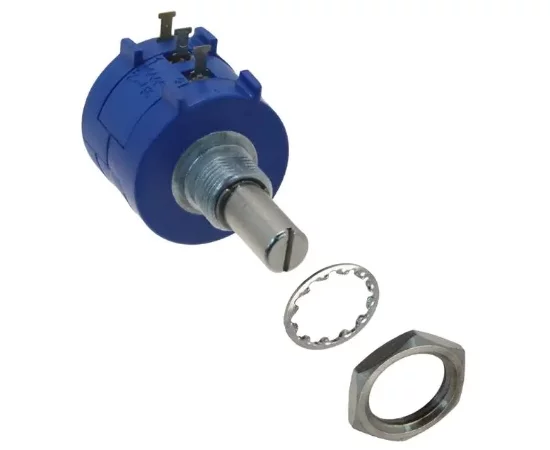

Multiturn precision wirewound potentiometer; 3590; 10kR; metal shaft

Symbol Micros: PO 3590k010-m

46689

PO 3590k010-m

Contractor Symbol:

Case : Rys.3590

Datasheet

Technical drawing Add to favourites

Effective electrical travel: >3600° ± 10°; 20,63x18,59mm; power: 0.5W; tolerance: 5%; 100ppm/°C; operating temperature: -55÷125°C

Parameters

Resistance:	10 kOhm
Characteristic:	Linear
Dimensions:	20,63x18,59mm
Kind of potentiometer:	Multi-turn
Mounting:	THT
Operating temperature (range):	-55°C ~ 125°C
Power:	0,5W

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number: 3590S-2-103 RoHS Case style: Rys.3590

In stock:

0 pcs.

Quantity of pcs.	1+	5+	25+	50+	200+
Net price (EUR)	2,5783	2,0400	1,8228	1,7732	1,7189

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/50 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-12-22

Quantity of pcs.: 200

• Parameters

Resistance:	10 kOhm
Characteristic:	Linear
Dimensions:	20,63x18,59mm
Kind of potentiometer:	Multi-turn
Mounting:	THT
Operating temperature (range):	-55°C ~ 125°C
Power:	0,5W
Rotation angle:	3600°
Temperature coefficient:	100ppm/°C
Tolerance:	5%
Type of potentiometer:	Shaft
