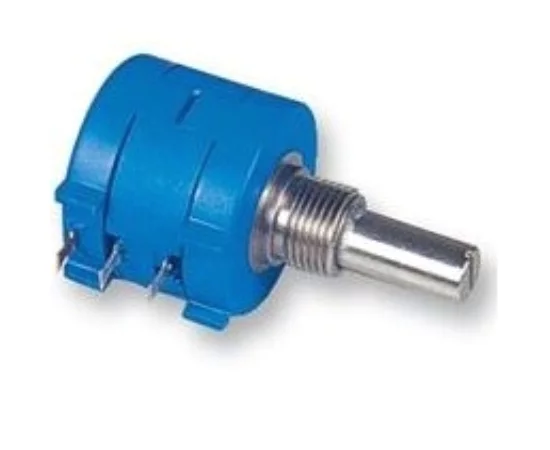

3590S-2-102L Bourns Potentiometer

Symbol Micros: PO 3590S-2-102L

298635

PO 3590S-2-102L

Contractor Symbol:

Case : Rys.3590S

Datasheet

Technical drawing Add to favourites

Multi turn shaft potentiometer; 1kR; linear characteristics; 22x18.6mm; shaft diameter: 6.35mm; power: 2W; tolerance: 5%; 50ppm/°C; 1500V; operating temperature: -40°C÷125°C

Parameters

Resistance:	1,0 kOhm
Dimensions:	22x18.6mm
Power:	2,0W
Manufacturer:	Bourns
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	5%
Kind of potentiometer:	Multi-turn

All parameters

Manufacturer:: Bourns Manufacturer part number: 3590S-2-102L RoHS Case style: Rys.3590S Datasheet

In stock:

6 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	14,4169	12,4016	11,1169	10,6494	10,2243

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Resistance:	1,0 kOhm
Dimensions:	22x18.6mm
Power:	2,0W
Manufacturer:	Bourns
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	5%
Kind of potentiometer:	Multi-turn
Temperature coefficient:	50ppm/°C
Characteristic:	Linear
Type of potentiometer:	Shaft
