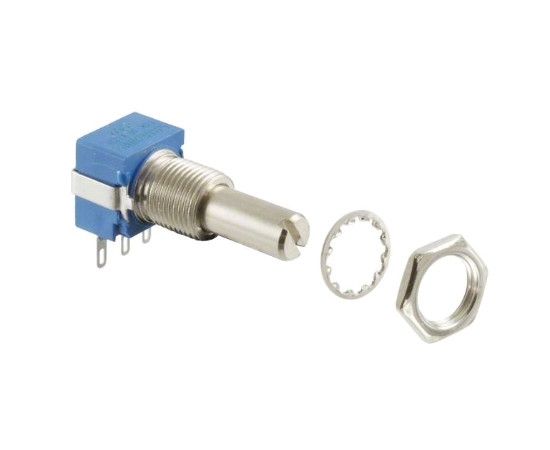

53RAA-R25-A15L Bourns Potentiometer

Symbol Micros: PO 53RAA-R25-A15L

298650

PO 53RAA-R25-A15L

Contractor Symbol:

Case : Rys.53AAA

Datasheet

Technical drawing Add to favourites

Single turn shaft potentiometer; 10kR; turns: 270°; on panel; linear characteristics; 13,25x12,5x8,9mm; shaft diameter: 6mm; 1W; tolerance: 10%; operating temperature: -1°C÷125°C

Parameters

Resistance:	10 kOhm
Dimensions:	13.25x12.5x8.9mm
Power:	1W
Operating temperature (range):	-1°C ~ 125°C
Manufacturer:	Bourns
Tolerance:	10%
Mounting:	On panel

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	10 kOhm
Dimensions:	13.25x12.5x8.9mm
Power:	1W
Operating temperature (range):	-1°C ~ 125°C
Manufacturer:	Bourns
Tolerance:	10%
Mounting:	On panel
Rotation angle:	270°
Characteristic:	Linear
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
