96A1A-B28-A15L Bourns

Symbol Micros: PO 96A1A-B28-A15L

298594

PO 96A1A-B28-A15L

Contractor Symbol:

Case : Rys.96A1A-B28-A15L

Datasheet

Technical drawing Add to favourites

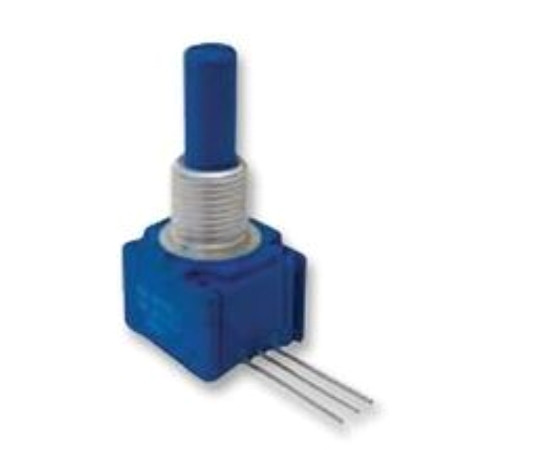

Single turn shaft potentiometer; 10k; turns: 240°; on panel; linear characteristics; 15.9x17.5x12.7mm; shaft diameter: 6.35mm; 2W; tol. 10%; operating temperature: -40°C÷125°C

Parameters

Resistance:	10 kOhm
Dimensions:	15.9x17.5x12.7mm
Power:	2,0W
Operating temperature (range):	-40°C ~ 125°C
Manufacturer:	Bourns
Tolerance:	10%
Mounting:	On panel

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	10 kOhm
Dimensions:	15.9x17.5x12.7mm
Power:	2,0W
Operating temperature (range):	-40°C ~ 125°C
Manufacturer:	Bourns
Tolerance:	10%
Mounting:	On panel
Rotation angle:	240°
Characteristic:	Linear
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
