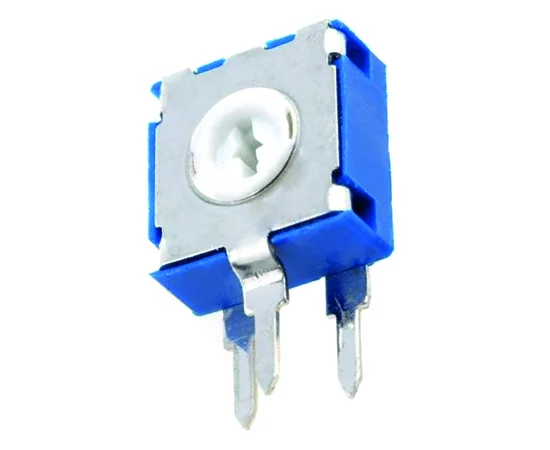

CA9H-4K7 ACP Potentiometer

Symbol Micros: PO CA9hk004.7

103620

PO CA9hk004.7

Contractor Symbol:

Case : Rys.CA9H

Datasheet

Technical drawing Add to favourites

Single turn carbon potentiometer; CA9H; 4.7kR; vertical; 10x10x5mm; power: 150mW; tolerance: 20%; r=5x2.5mm; operating temperature: -25°C÷70°C

Parameters

Resistance:	4,7 kOhm
Dimensions:	10x10x5mm
Terminal pitch:	5x2,5mm
Mounting:	THT
Power:	150mW
Accessories type:	N/A
Kind of potentiometer:	Single-turn

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	4,7 kOhm
Dimensions:	10x10x5mm
Terminal pitch:	5x2,5mm
Mounting:	THT
Power:	150mW
Accessories type:	N/A
Kind of potentiometer:	Single-turn
Tolerance:	20%
Type of potentiometer:	Mounting
Manufacturer:	ACP
Operating temperature (range):	-25°C ~ 70°C
