CA9PH2,5-100KA2020 ACP Potentiometer

Symbol Micros: PO CA9hk100

103624

PO CA9hk100

Contractor Symbol:

Case : Rys.CA9H

Datasheet

Technical drawing Add to favourites

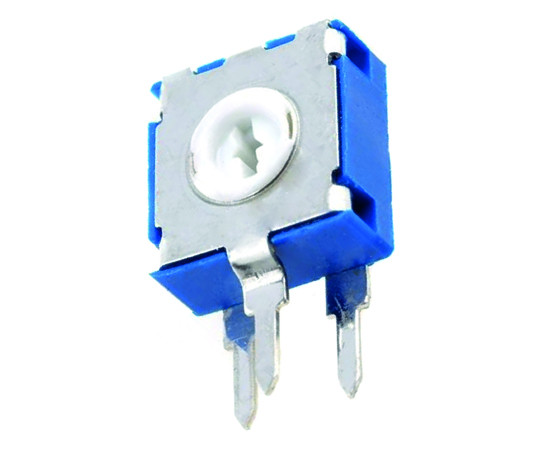

Single turn carbon potentiometer; CA9H; 100kR; vertical; 10x10x5mm; power: 150mW; tolerance: 20%; r=5x2.5mm; operating temperature: -25°C÷70°C

Parameters

Resistance:	100 kOhm
Dimensions:	10x10x5mm
Terminal pitch:	5x2,5mm
Mounting:	THT
Power:	150mW
Accessories type:	N/A
Kind of potentiometer:	Single-turn

All parameters

Manufacturer:: Ara`gonesa Componentes Pasivos Manufacturer part number: CA9PH2,5-100KA2020 RoHS Case style: Rys.CA9H Datasheet

In stock:

100 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,2620	0,1678	0,1175	0,1008	0,0956

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/500 Quantity (multiple: 1)

- +

Manufacturer:: Ara`gonesa Componentes Pasivos Manufacturer part number: CA9PH2,5-100KA2020 Case style: Rys.CA9H

External warehouse:

500 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1147

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	100 kOhm
Dimensions:	10x10x5mm
Terminal pitch:	5x2,5mm
Mounting:	THT
Power:	150mW
Accessories type:	N/A
Kind of potentiometer:	Single-turn
Tolerance:	20%
Type of potentiometer:	Mounting
Manufacturer:	ACP
Operating temperature (range):	-25°C ~ 70°C
