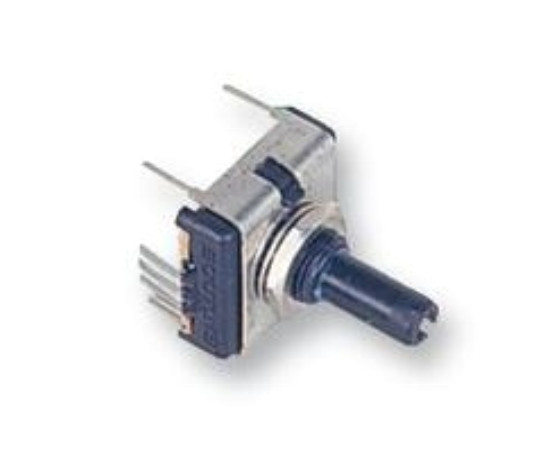

PCW1J-R24-BAB103L Bourns Potentiometer

Symbol Micros: PO PCW1J-R24-BAB103L

298628

PO PCW1J-R24-BAB103L

Contractor Symbol:

Case : Rys.PCW1J

Datasheet

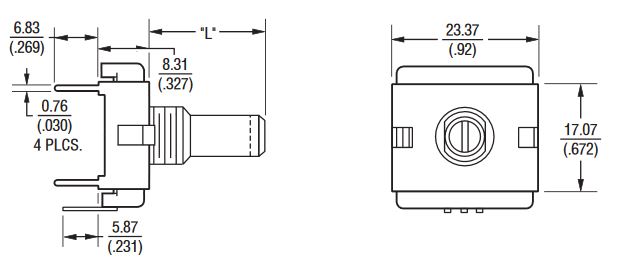

Technical drawing Add to favourites

Single turn shaft potentiometer; 10kR; turns: 270°; on panel; linear characteristics; 23.4x22x8.3mm; shaft diameter: 6mm; 0.75W; tolerance: 20%; operating temperature: -1°C÷125°C

Parameters

Resistance:	10 kOhm
Dimensions:	23.4x22x8.3mm
Power:	0,75W
Operating temperature (range):	-1°C ~ 125°C
Manufacturer:	Bourns
Tolerance:	20%
Mounting:	On panel

All parameters

Manufacturer:: Bourns Manufacturer part number: PCW1J-R24-BAB103L Case style: Rys.PCW1J

External warehouse:

270 pcs.

Quantity of pcs.	45+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,3210

Add to comparison tool Add inquiry (RFQ)

Packaging:
45

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	10 kOhm
Dimensions:	23.4x22x8.3mm
Power:	0,75W
Operating temperature (range):	-1°C ~ 125°C
Manufacturer:	Bourns
Tolerance:	20%
Mounting:	On panel
Rotation angle:	270°
Characteristic:	Linear
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
