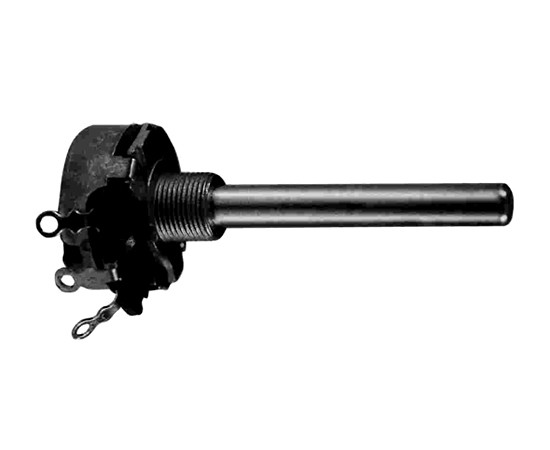

3104603998 AB ELEKTRONIK Potentiometer

Symbol Micros: PO POT4W-100R

117767

PO POT4W-100R

Contractor Symbol:

Case : Rys.POT4W

Datasheet

Technical drawing Add to favourites

Single turn shaft potentiometer; 100R; turn: 280°; linear characteristics; shaft diameter: 6mm; shaft length: 50mm; power: 4W; tolerance: 10%; operating temperature: -40°C÷90°C

Parameters

Resistance:	100 Ohm
Power:	4W
Operating temperature (range):	-40°C ~ 90°C
Manufacturer:	AB ELEKTRONIK
Tolerance:	10%
Rotation angle:	280°
Characteristic:	Linear

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	100 Ohm
Power:	4W
Operating temperature (range):	-40°C ~ 90°C
Manufacturer:	AB ELEKTRONIK
Tolerance:	10%
Rotation angle:	280°
Characteristic:	Linear
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
