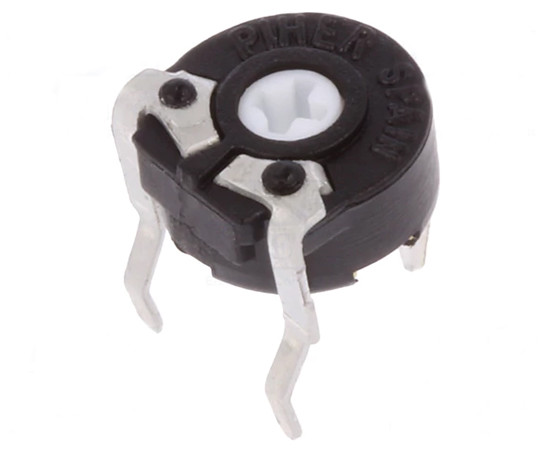

PT6KV-105A2020 Piher Trimmer

Symbol Micros: PO PT06lvm001.00

363836

PO PT06lvm001.00

Contractor Symbol:

Case : Rys.PT6LV

Datasheet

Technical drawing Add to favourites

Single turn carbon trimmer potentiometer; 1MR; horizontal; rotation angle 220°; THT; 6,3x3,3mm; power: 0.1W; tolerance: ±20%; 300ppm/°C; r= 5x5mm; operating temperature: -25÷70°C

Parameters

Resistance:	1 MOhm
Dimensions:	6,3x3,3mm
Power:	0,1W
Terminal pitch:	r= 5x5mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear

All parameters

Manufacturer:: Piher Manufacturer part number: PT6KV105A2020 RoHS Case style: Rys.PT6LV Datasheet

In stock:

120 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5404	0,3280	0,2525	0,2275	0,2164

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
200 Quantity (multiple: 1)

- +

Manufacturer:: Piher Manufacturer part number: PT6KV-105A2020 Case style: Rys.PT6LV

External warehouse:

1325 pcs.

Quantity of pcs.	25+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2827

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	1 MOhm
Dimensions:	6,3x3,3mm
Power:	0,1W
Terminal pitch:	r= 5x5mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Rotation angle:	220°
Tolerance:	20%
Type of potentiometer:	Mounting
