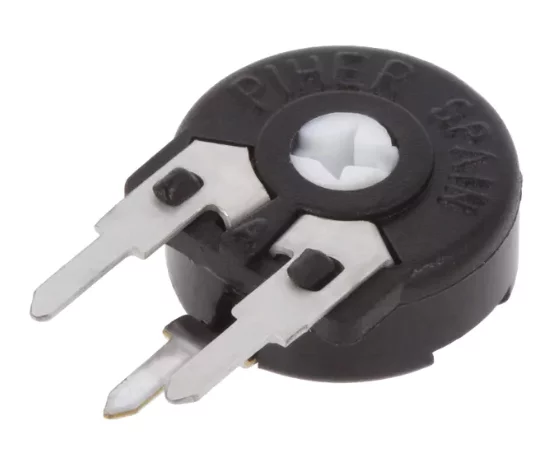

PT10LH01-504A2020 Piher Trimmer

Symbol Micros: PO PT10lhk500.00

23305

PO PT10lhk500.00

Contractor Symbol:

Case : Rys.PT10H

Datasheet

Technical drawing Add to favourites

Single turn carbon trimmer potentiometer; 500kR; vertical; rotation angle 220°; THT; 10,3x4,8mm; power: 0.15W; tolerance: ±20%;300ppm/°C; r= 5x2,5mm; operating temperature: -25÷70°C

Parameters

Resistance:	500 kOhm
Dimensions:	10,3x4,8mm
Power:	150mW
Terminal pitch:	r= 5x2,5mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear

All parameters

Manufacturer:: Piher Manufacturer part number: PT10LH01504A2020S RoHS Case style: Rys.PT10H Datasheet

In stock:

400 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5853	0,3526	0,2680	0,2421	0,2339

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Resistance:	500 kOhm
Dimensions:	10,3x4,8mm
Power:	150mW
Terminal pitch:	r= 5x2,5mm
Operating temperature (range):	-25°C ~ 70°C
Temperature coefficient:	300ppm/°C
Characteristic:	Linear
Kind of potentiometer:	Single-turn
Manufacturer:	Piher
Mounting:	THT
Rotation angle:	220°
Tolerance [%]:	20%
Type of potentiometer:	Mounting
