Single turn shaft potentiometer; 20K; L=15mm

Symbol Micros: PO R9011H-1-B20K/L15-Y

295213

PO R9011H-1-B20K/L15-Y

Contractor Symbol:

Case : Rys.R9011H-1-B/L15-Y

Datasheet

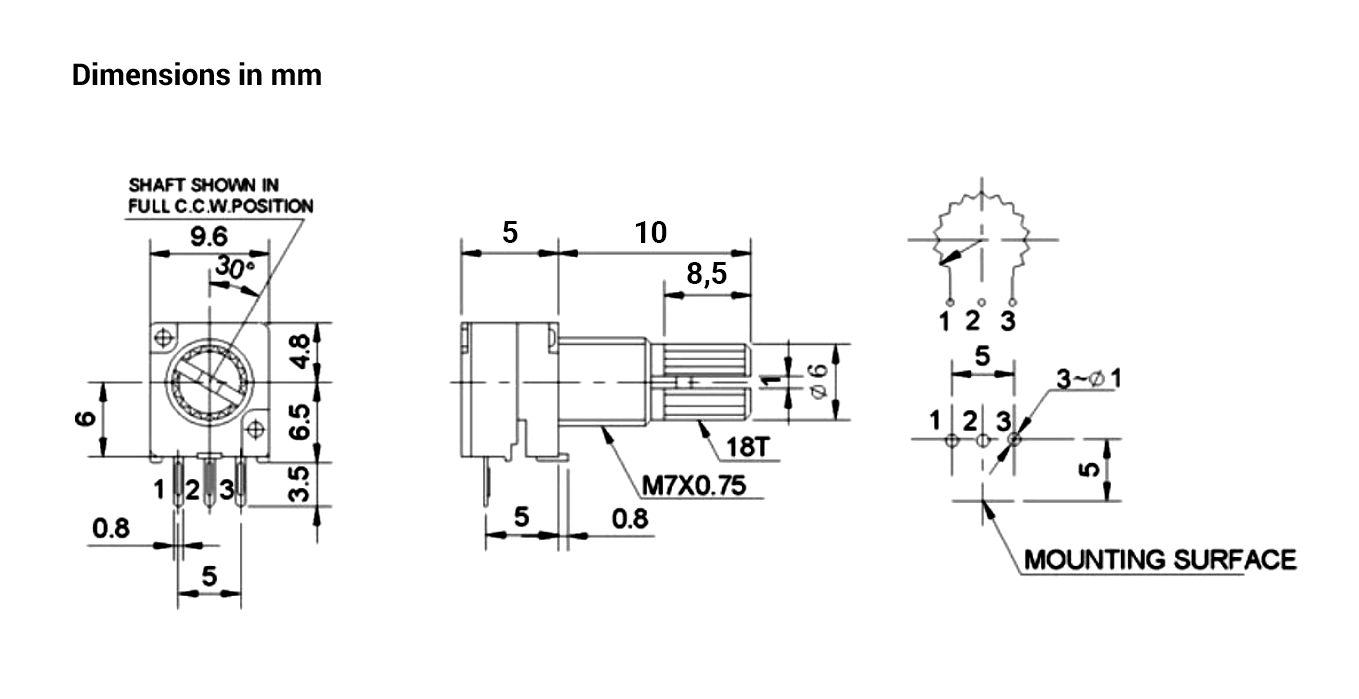

Technical drawing Add to favourites

PCB; linear characteristics; 9.6x11.3x7mm; shaft diameter: 6mm; operating temperature: -10°C÷100°C

Parameters

Resistance:	20 kOhm
Dimensions:	9.6x11.3x7mm
Power:	0,05W
Operating temperature (range):	-10°C ~ 100°C
Manufacturer:	N/A
Tolerance:	20%
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	20 kOhm
Dimensions:	9.6x11.3x7mm
Power:	0,05W
Operating temperature (range):	-10°C ~ 100°C
Manufacturer:	N/A
Tolerance:	20%
Mounting:	PCB
Characteristic:	Linear
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
