RK09L1140A65 ALPS

Symbol Micros: PO RK09L1140A65

298602

PO RK09L1140A65

Contractor Symbol:

Case : Rys.RK09L114

Datasheet

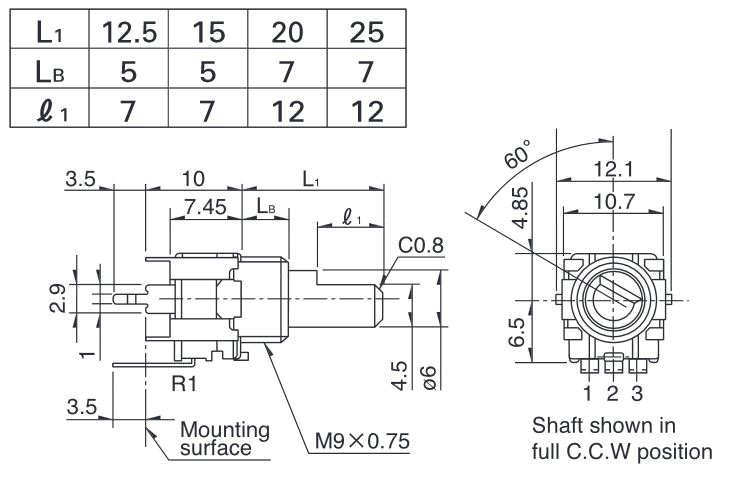

Technical drawing Add to favourites

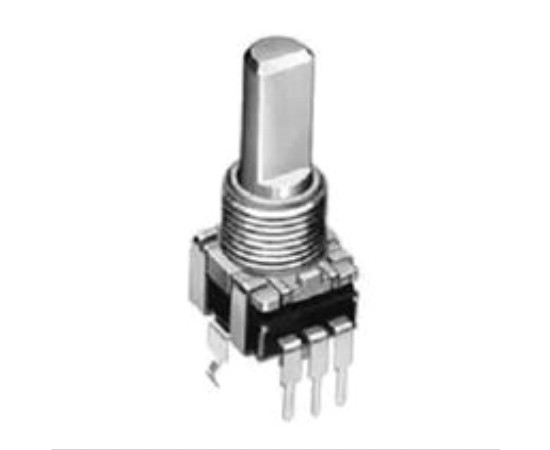

Single turn shaft potentiometer; 5kR; turns: 300°; linear characteristics; 11.3x10.7x7.45mm; shaft diameter: 6mm; 0.05W; tol. 20%; operating temperature: -10°C÷70°C

Parameters

Resistance:	5,0kOhm
Dimensions:	11.3x10.7x7.45mm
Power:	0,05W
Operating temperature (range):	-10°C ~ 70°C
Manufacturer:	ALPS
Tolerance:	20%
Rotation angle:	300°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	5,0kOhm
Dimensions:	11.3x10.7x7.45mm
Power:	0,05W
Operating temperature (range):	-10°C ~ 70°C
Manufacturer:	ALPS
Tolerance:	20%
Rotation angle:	300°
Type of potentiometer:	Shaft
Kind of potentiometer:	Single-turn
