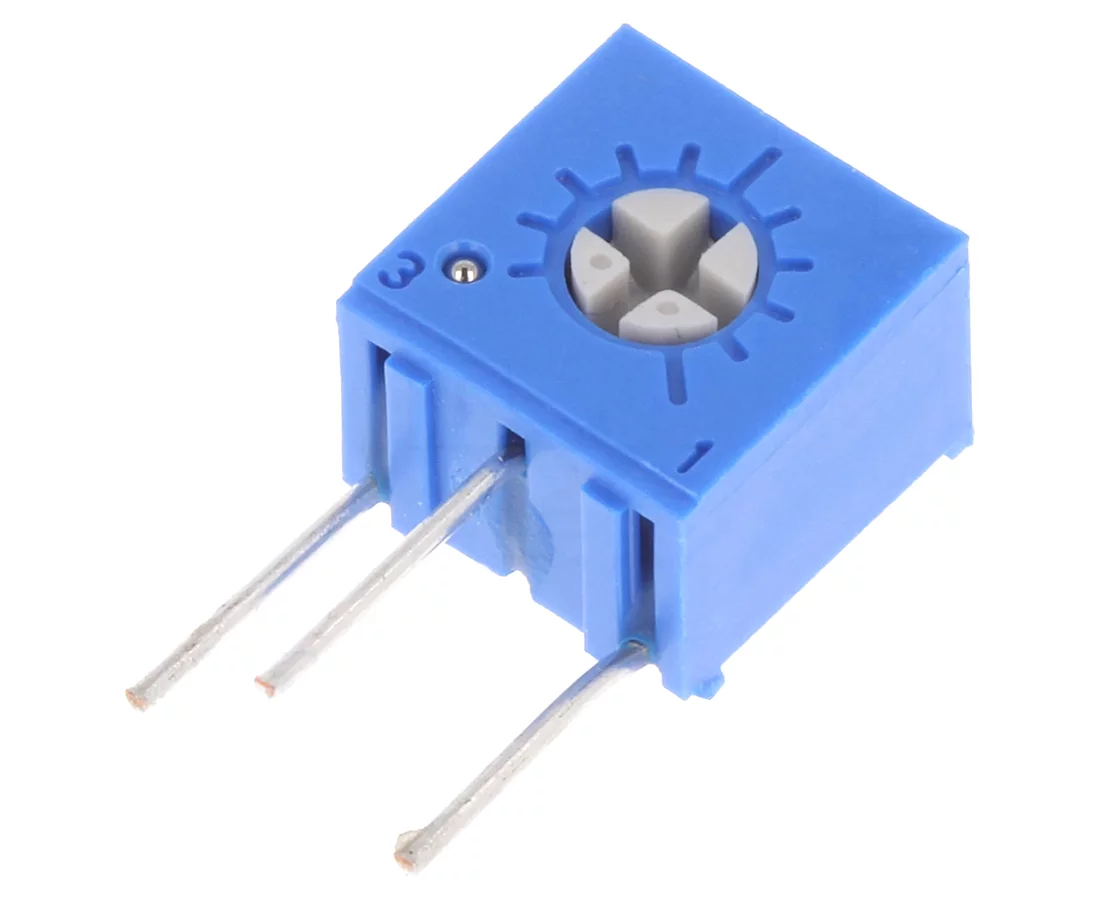

T73XX103KT20 Vishay Trimmer

Symbol Micros: PO T73XX103KT20

301157

PO T73XX103KT20

Contractor Symbol:

Case : Rys.T73XX

Datasheet

Technical drawing Add to favourites

Single turn cermet trimmer; 10kR; turn: 240°; vertical; THT; IP67; 7x6,6x4,7mm; power: 500mW; tolerance: 10%; 100ppm/°C; r=2,54x2,54mm; operating temperature: -25÷125°C

Parameters

Resistance:	10 kOhm
Characteristic:	Linear
Dimensions:	7x6,6x4,7mm
IP rating:	IP67
Kind of potentiometer:	Single-turn
Manufacturer:	VISHAY
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	10 kOhm
Characteristic:	Linear
Dimensions:	7x6,6x4,7mm
IP rating:	IP67
Kind of potentiometer:	Single-turn
Manufacturer:	VISHAY
Mounting:	THT
Operating temperature (range):	-25°C ~ 125°C
Power:	0,5W
Rotation angle:	240°
Temperature coefficient:	100ppm/°C
Terminal pitch:	2,54x2,54mm
Tolerance:	10%
Type of potentiometer:	Mounting
