1241.1104.7091 Schurter Switch

Symbol Micros: PRZ 1241.1104.7091

283503

PRZ 1241.1104.7091

Contractor Symbol:

Case : Rys.1241.11xx

Datasheet

Technical drawing Add to favourites

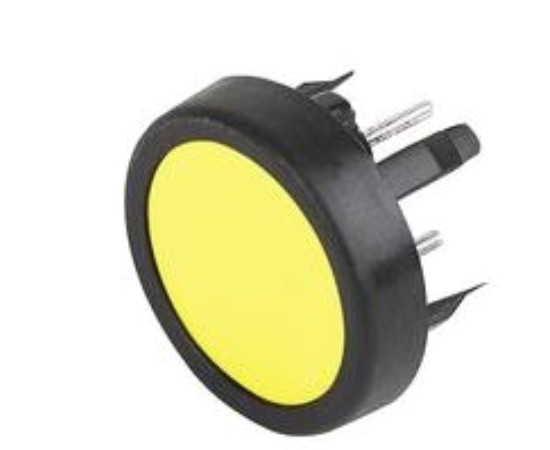

Push-button switch; 1-position; NO; 0,125A; 48VDC; 18mm; round; yellow; pin terminals; OFF-(ON); SPST; 2P; lifetime: 1000000 cykli

Parameters

Key button colour:	Yellow
Button shape:	Round
Accessories type:	N/A
Body colour:	Black
Contacts configuration:	NO
Contacts rating:	0,125A; 48VDC
IP rating:	IP65

All parameters

Manufacturer:: Schurter Manufacturer part number: 1241.1104.7091 RoHS Case style: Rys.1241.11xx Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,5521	3,1580	2,9219	2,8039	2,7331

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Key button colour:	Yellow
Button shape:	Round
Accessories type:	N/A
Body colour:	Black
Contacts configuration:	NO
Contacts rating:	0,125A; 48VDC
IP rating:	IP65
Illumination:	None
Leads:	For soldering
Mounting:	On panel
Switching method:	OFF-(ON)
Type of switch:	Push button
Manufacturer:	SCHURTER
Operating temperature (range):	-25°C ~ 60°C
Stable positions number:	1
