1241.6921.1120000 Schurter

Symbol Micros: PRZ 1241.6921.1120000

214171

PRZ 1241.6921.1120000

Contractor Symbol:

Case : Rys.1241.6921

Datasheet

Technical drawing Add to favourites

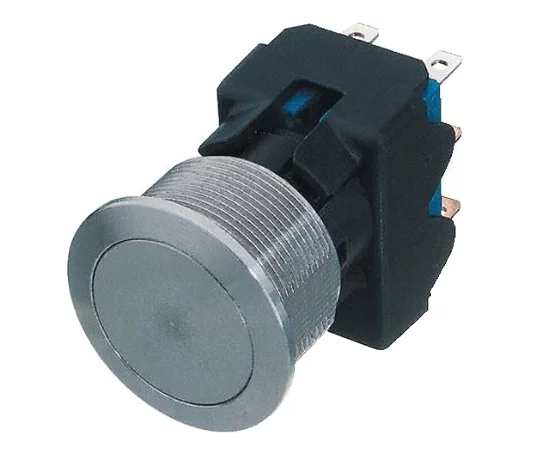

19mm; momentary; ON-(ON); DPDT; stainless steel; silver; pin terminals; front shape-flat; 3A; 250VAC; IP67; IK07; lifetime: 1.500.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	ON-(ON)
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	DPDT
Leads:	For soldering

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	N/A
Switching method:	ON-(ON)
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	DPDT
Leads:	For soldering
Mounting hole diameter:	19mm
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	SCHURTER
Type of switch:	Vandal-resistant
