ASW-20D automotive switch

Symbol Micros: PRZ Asw20db/y

219746

PRZ Asw20db/y

Contractor Symbol:

Case : Rys.ASW-20Dby

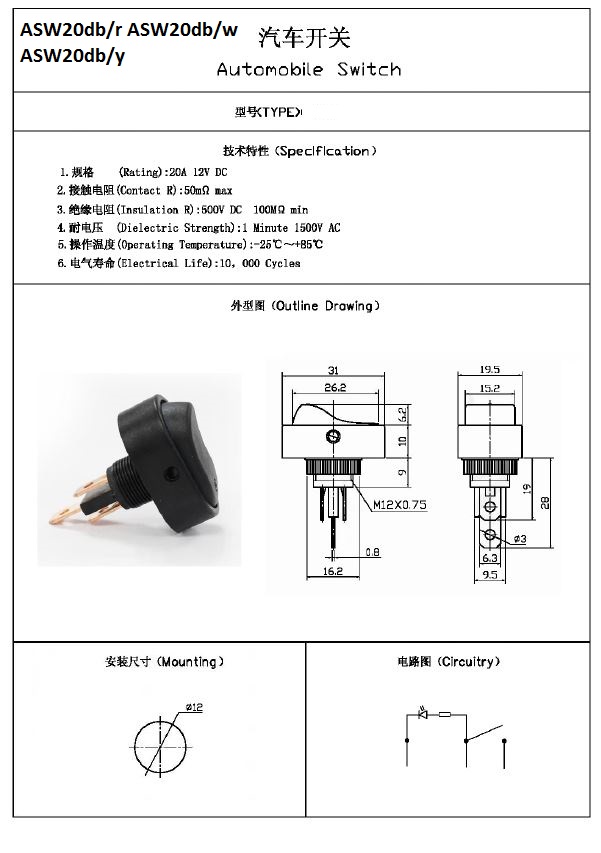

Datasheet

Technical drawing Add to favourites

20A 12VDC ON-OFF single pole SPST 3P with yellow lamp Endurance: 10000 cycles, ambient temperature.: -25°C+85°C

Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2021-07-05

Quantity of pcs.: 500

• Parameters

Contacts rating:	20A 12VDC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
