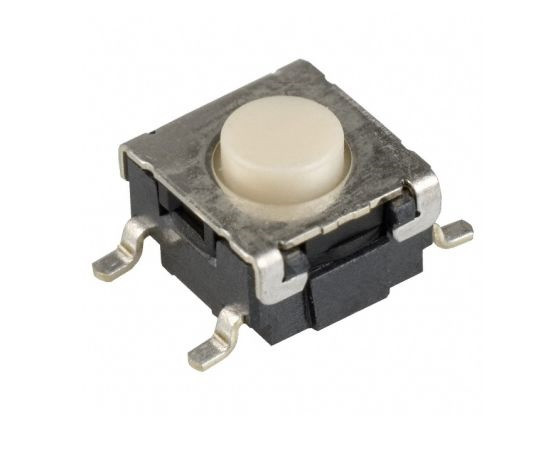

B3S-1000 OMRON Tact switch

Symbol Micros: PRZ B3S-1000

396594

PRZ B3S-1000

Contractor Symbol:

Case : Rys.B3S-1000

Datasheet

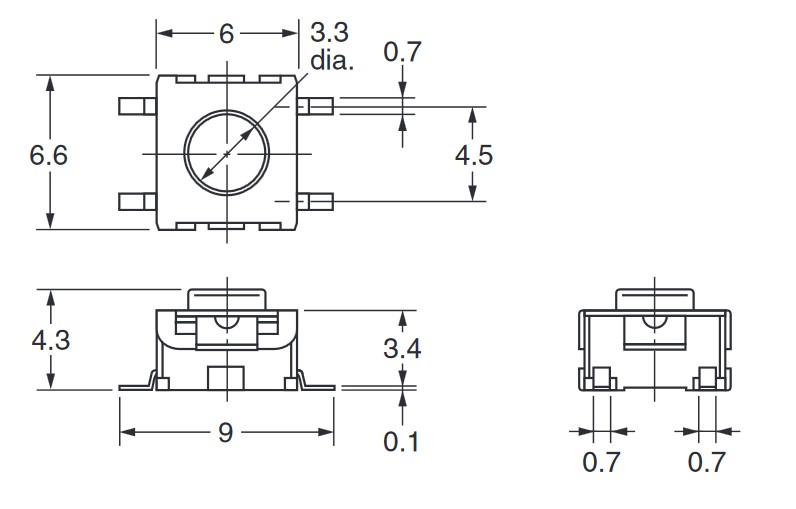

Technical drawing Add to favourites

6x6mm H= 4.3mm, 24V DC, 50mA, life 500000 cycles, travel 0.25mm SMD, operating force 160gf

Parameters

Dimensions:	6x6mm
Height:	4,3mm
Operating Force [gF]:	160gF
Manufacturer:	OMRON
Mechanical durability:	500000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	6x6mm
Height:	4,3mm
Operating Force [gF]:	160gF
Manufacturer:	OMRON
Mechanical durability:	500000 cycles
Mounting:	SMD
