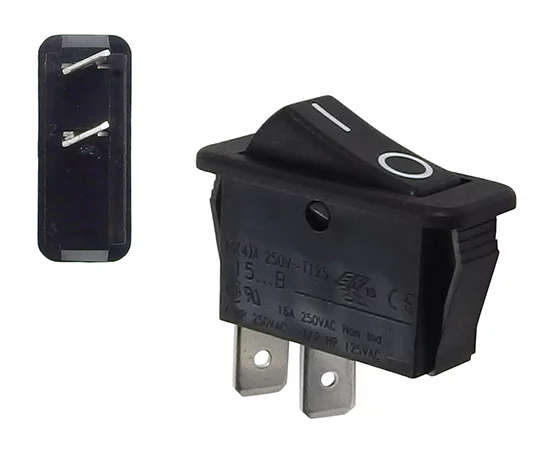

C1560ABAAA Bulgin Rocker switch

Symbol Micros: PRZ C1560ABAAA

275790

PRZ C1560ABAAA

Contractor Symbol:

Case : Rys.C1350

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; cap colour: black; DPDT; 6P; 16A 250VAC; connectors 6,3x0,8mm; mounting hole diameter: 30x11mm

Parameters

Contacts rating:	16A 250V
Key button colour:	Black
Contacts configuration:	DPDT
Switching method:	ON-ON
Leads:	Connectors (6,3x0,8mm)
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	16A 250V
Key button colour:	Black
Contacts configuration:	DPDT
Switching method:	ON-ON
Leads:	Connectors (6,3x0,8mm)
Body colour:	Black
Accessories type:	N/A
Manufacturer:	Bulgin
Type of switch:	Rocker
