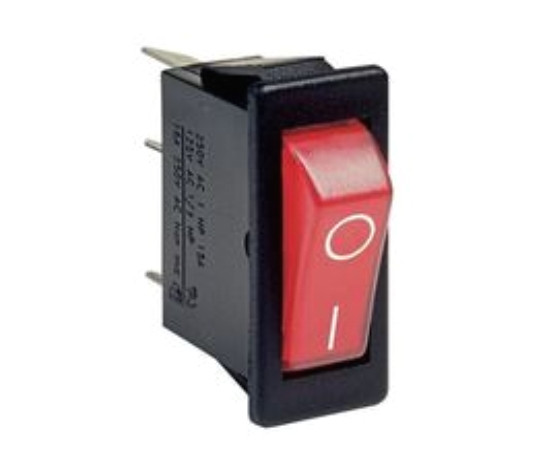

C5503ABNAA Bulgin Rocker switch

Symbol Micros: PRZ C5503ABNAA

275791

PRZ C5503ABNAA

Contractor Symbol:

Case : Rys.C5503

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: black; SP3T; 3P; 16A 250VAC; connectors 6,3x0,8mm; mounting hole diameter: 30x11mm

Parameters

Contacts rating:	16A 250V
Key button colour:	Black
Switching method:	ON-OFF
Contacts configuration:	SP3T
Leads:	Connectors (6,3x0,8mm)
Accessories type:	N/A
Body colour:	Black

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	16A 250V
Key button colour:	Black
Switching method:	ON-OFF
Contacts configuration:	SP3T
Leads:	Connectors (6,3x0,8mm)
Accessories type:	N/A
Body colour:	Black
Manufacturer:	Bulgin
Type of switch:	Rocker
