CK1049 LORLIN

Symbol Micros: PRZ CK1049

115152

PRZ CK1049

Contractor Symbol:

Case : Rys.CK1049

Datasheet

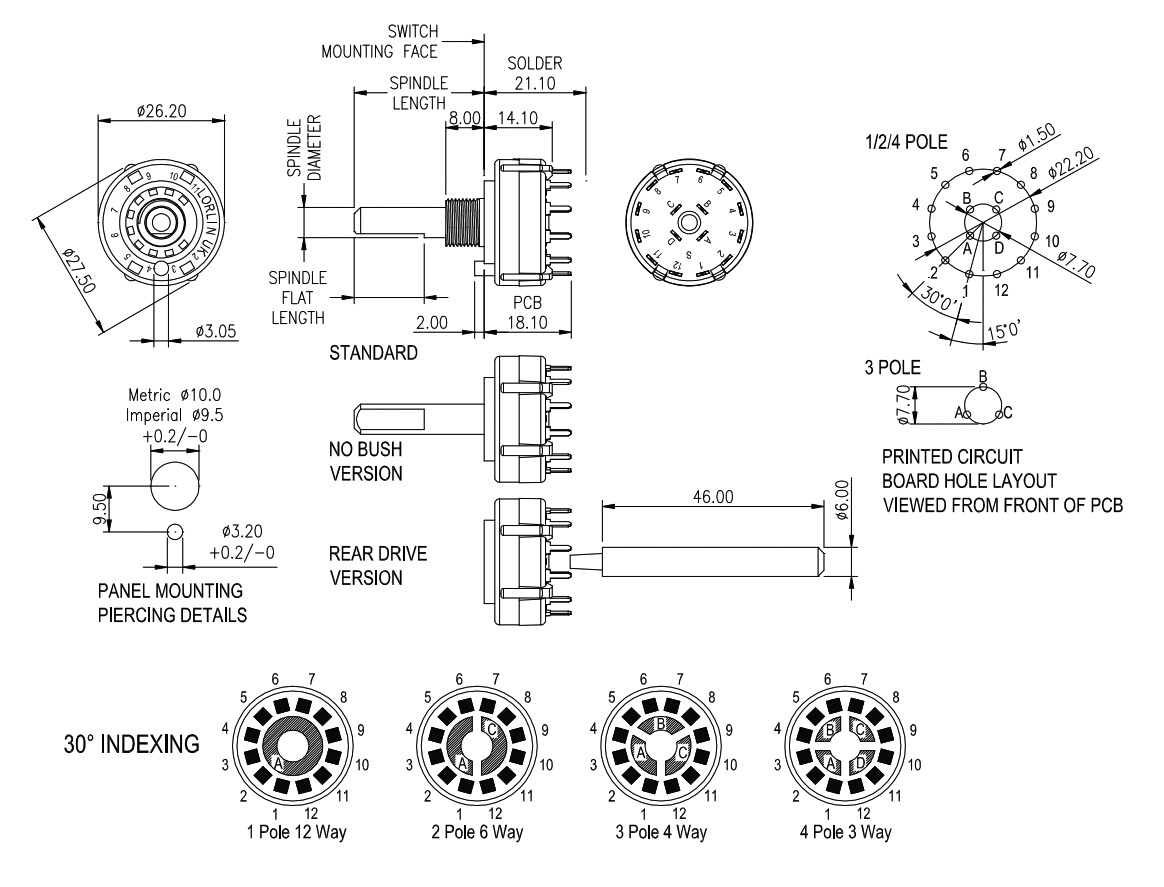

Technical drawing Add to favourites

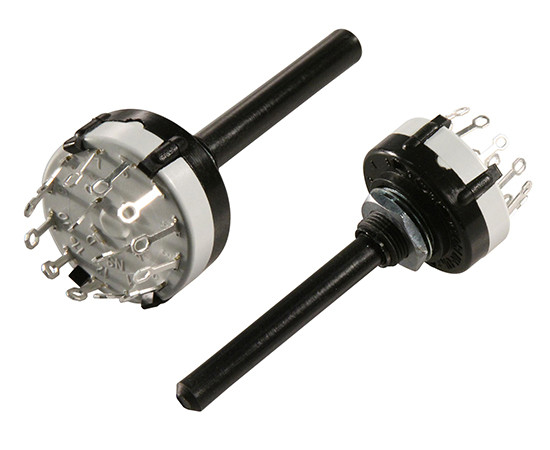

Rotary switch; stable positions: 12x30°, shaft diameter 6mm, shaft length 50mm, thread M10x0,75 PCB; switching torque 8.6Ncm; switching method BBM (non-shorting)

Parameters

Manufacturer:	LORLIN
Leads:	For PCB
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Switching method:	BBM (non-shorting)
Type of switch:	Rotary

All parameters

Manufacturer:: LORLIN Manufacturer part number: CK-1049 Case style: Rys.CK1049

External warehouse:

2615 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,0619

Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	LORLIN
Leads:	For PCB
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Switching method:	BBM (non-shorting)
Type of switch:	Rotary
