CK1052 LORLIN Switch

Symbol Micros: PRZ CK1052

115155

PRZ CK1052

Contractor Symbol:

Case : Rys.CK1052

Datasheet

Technical drawing Add to favourites

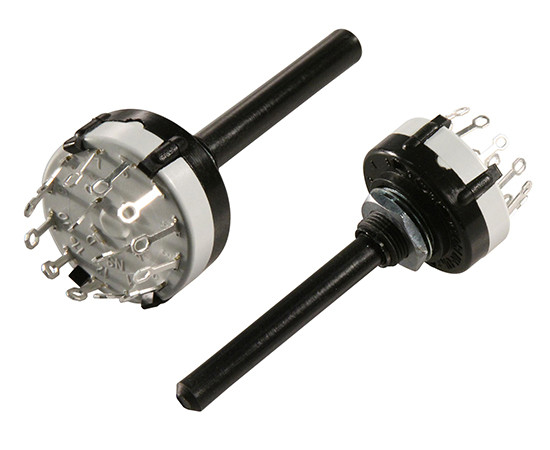

Rotary switch; stable positions: 3x30°, shaft diameter 6mm, shaft length 50mm, thread M10x0,75 PCB; switching torque 8.6Ncm; switching method BBM (non-shorting)

Parameters

Manufacturer:	LORLIN
Leads:	For PCB
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Type of switch:	Rotary

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	LORLIN
Leads:	For PCB
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Type of switch:	Rotary
