CK1059 LORLIN Switch

Symbol Micros: PRZ CK1059

115157

PRZ CK1059

Contractor Symbol:

Case : Rys.CK1059

Datasheet

Technical drawing Add to favourites

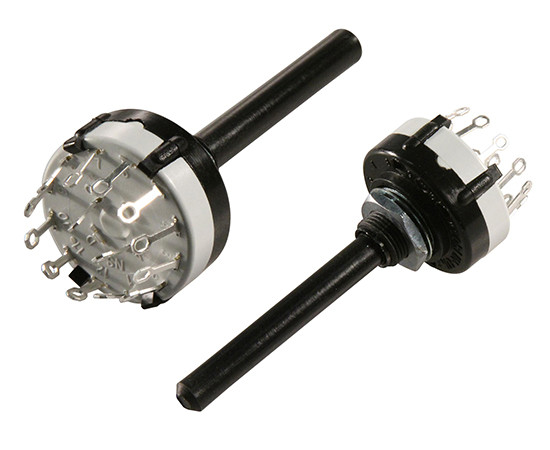

Rotary switch; stable positions: 12x30°, shaft diameter 6mm, shaft length 50mm, thread M10x0,75 PCB; switching torque 8.6Ncm; switching method MBB (shorting)

Parameters

Manufacturer:	LORLIN
Leads:	For PCB
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Type of switch:	Rotary

All parameters

Manufacturer:: LORLIN Manufacturer part number: CK1059 RoHS Case style: Rys.CK1059 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	3,9273	3,3777	3,1630	3,0475	3,0215

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: LORLIN Manufacturer part number: CK1059 RoHS Case style: Rys.CK1059 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	3,9273	3,3777	3,1630	3,0475	3,0215

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	LORLIN
Leads:	For PCB
Mounting thread:	M10x0,75
Shaft diameter:	6mm
Shaft length:	50mm
Type of switch:	Rotary
