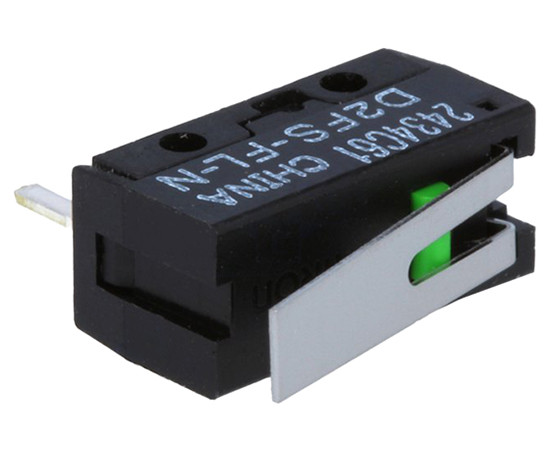

D2FS-FL-N Omron

Symbol Micros: PRZ D2FS-FL-N

102363

PRZ D2FS-FL-N

Contractor Symbol:

Case : Rys.D2FS-FL-N

Datasheet

Technical drawing Add to favourites

Micro switch; PCB; straight; dimensions: 12.8x6.5x5.8mm; r=5.08mm; 0.1A; 6VDC; OFF-(ON;) SPST-NO; 0.25N; endurance: 100000 cycles; operating temperature: -20°C+70°C

Parameters

Dimensions:	12.8x6.5x5.8mm
Contacts rating:	0.1A 6VDC
Force:	0,25N
Operating temperature (range):	-20°C ~ 70°C
Leads:	For PCB
Terminal pitch:	5.08mm
Manufacturer:	OMRON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	12.8x6.5x5.8mm
Contacts rating:	0.1A 6VDC
Force:	0,25N
Operating temperature (range):	-20°C ~ 70°C
Leads:	For PCB
Terminal pitch:	5.08mm
Manufacturer:	OMRON
Switching method:	OFF-(ON)
Contacts configuration:	SPST-NO
Type of switch:	Micro switch
