D2HW-A211D Omron

Symbol Micros: PRZ D2HW-A211D

125777

PRZ D2HW-A211D

Contractor Symbol:

Case : Rys.D2HW-A211D

Datasheet

Technical drawing Add to favourites

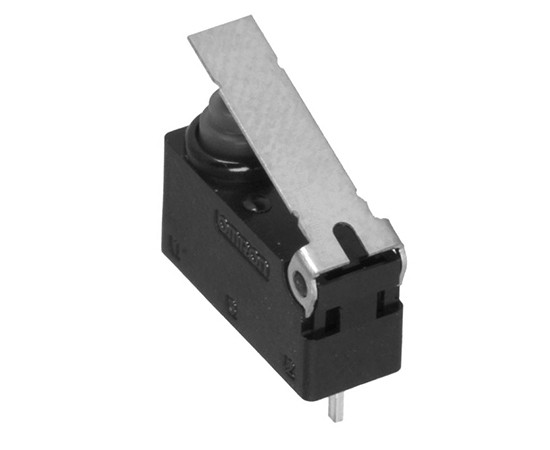

Micro switch, wypr.: PCB; dimensions: 13.3x5.3x6.5mm r=5.08mm; 0.1A; 125VAC; ON-(ON); SPDT; 1.47N; endurance: 1000000 cycles, operating temperature: -40°C+85°C

Parameters

Dimensions:	13.3x5.3x6.5mm
Contacts rating:	0.1A 125VAC
Force:	1,47N
Operating temperature (range):	-40°C ~ 85°C
Leads:	For PCB
Terminal pitch:	5.08mm
Manufacturer:	OMRON

All parameters

Manufacturer:: OMRON Manufacturer part number: D2HWA211D Case style: Rys.D2HW-A211D

External warehouse:

714 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,9033

Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	13.3x5.3x6.5mm
Contacts rating:	0.1A 125VAC
Force:	1,47N
Operating temperature (range):	-40°C ~ 85°C
Leads:	For PCB
Terminal pitch:	5.08mm
Manufacturer:	OMRON
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
