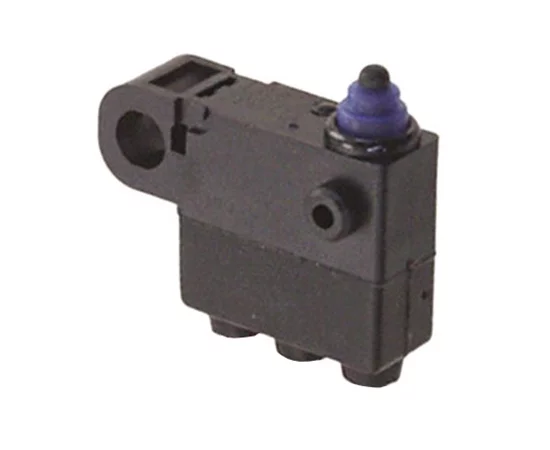

D2HW-C203M Omron

Symbol Micros: PRZ D2HW-C203M

125787

PRZ D2HW-C203M

Contractor Symbol:

Case : Rys.D2HW-C203M

Datasheet

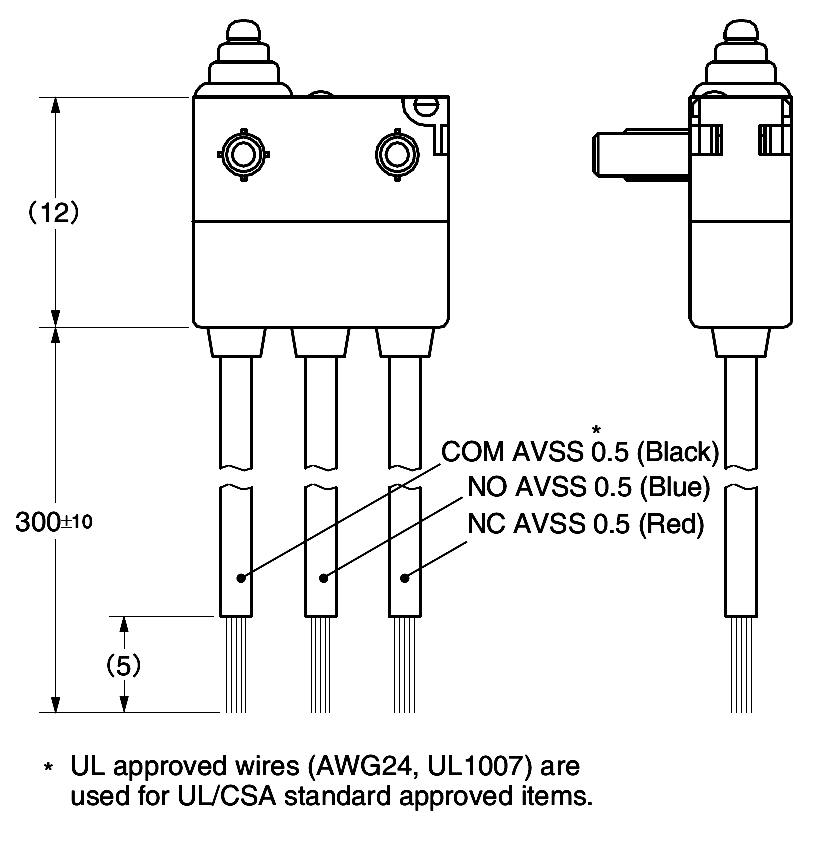

Technical drawing Add to favourites

Micro switch; leads: 300mm; downwards; dimensions: 18.5x5.3x6.5mm; 0.1A; 125VAC; OFF-(ON); SPST-NO; 0.75N; endurance: 1000000 cycles; operating temperature: -40°C+85°C

Parameters

Dimensions:	18.5x5.3x6.5mm
Force:	0,75N
Contacts rating:	0.1A 125VAC
Operating temperature (range):	-40°C ~ 85°C
Leads:	Wires
Manufacturer:	OMRON
Switching method:	OFF-(ON)

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	18.5x5.3x6.5mm
Force:	0,75N
Contacts rating:	0.1A 125VAC
Operating temperature (range):	-40°C ~ 85°C
Leads:	Wires
Manufacturer:	OMRON
Switching method:	OFF-(ON)
Contacts configuration:	SPST-NO
Type of switch:	Micro switch
