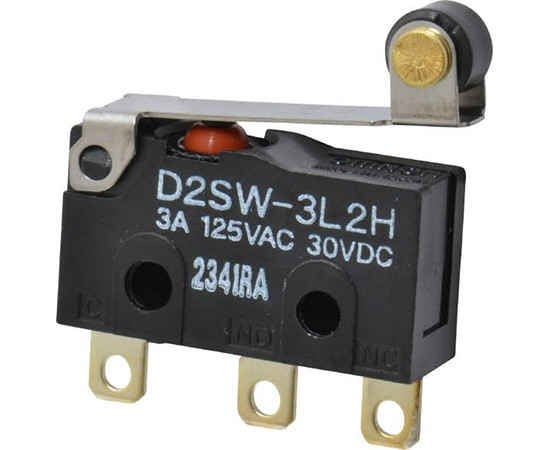

D2SW-3L2H Omron

Symbol Micros: PRZ D2SW-3L2H

122006

PRZ D2SW-3L2H

Contractor Symbol:

Case : Rys.D2SW-3L2H

Datasheet

Technical drawing Add to favourites

Micro switch; soldering; dimensions: 19.8x6.4x10.1mm; r=8.5mm; 3A; 125VAC; ON-(ON); SPDT; 0.59N; endurance: 5000000 cycles; operating temperature: -40°C+85°C

Parameters

Dimensions:	19.8x6.4x10.1mm
Force:	0,59N
Contacts rating:	3A 125VAC
Operating temperature (range):	-40°C ~ 85°C
Leads:	For soldering
Terminal pitch:	8.5mm
Manufacturer:	OMRON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	19.8x6.4x10.1mm
Force:	0,59N
Contacts rating:	3A 125VAC
Operating temperature (range):	-40°C ~ 85°C
Leads:	For soldering
Terminal pitch:	8.5mm
Manufacturer:	OMRON
Contacts configuration:	SPDT
Switching method:	ON-(ON)
Type of switch:	Micro switch
