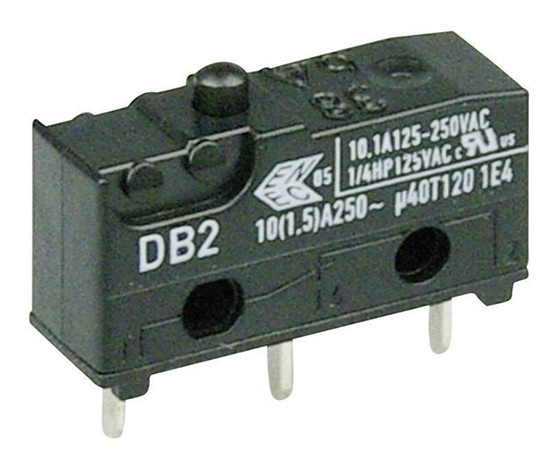

DB2C-C1AA Cherry

Symbol Micros: PRZ DB2C-C1AA

364066

PRZ DB2C-C1AA

Contractor Symbol:

Case : Rys.DB2C-C1AA

Datasheet

Technical drawing Add to favourites

Micro switch; conectors 1,3x0,5mm; dimensions: 20x6,45x9,65mm; 10A; 250VAC; ON-(ON); SPDT; endurance: 10000000 cycles; 2,45N; temp.: -40°C+120°C

Parameters

Dimensions:	20x6,45x9,65mm
Force:	2,45N
Contacts rating:	3A 250VAC
Operating temperature (range):	-40°C ~ 120°C
Leads:	Connectors (1,3x0,5mm)
Manufacturer:	Cherry
Switching method:	ON-(ON)

All parameters

Manufacturer:: ZF Electronics Manufacturer part number: DB2C-C1AA RoHS Case style: Rys.DB2C-C1AA

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9752	1,5755	1,3474	1,2110	1,1616

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	20x6,45x9,65mm
Force:	2,45N
Contacts rating:	3A 250VAC
Operating temperature (range):	-40°C ~ 120°C
Leads:	Connectors (1,3x0,5mm)
Manufacturer:	Cherry
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
