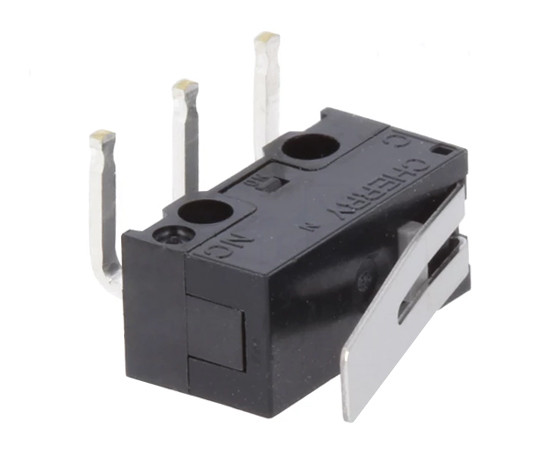

DG13-B3LA Cherry

Symbol Micros: PRZ DG13-B3LA

364072

PRZ DG13-B3LA

Contractor Symbol:

Case : Rys.DG13-B3LA

Datasheet

Technical drawing Add to favourites

Micro switch; PCB; dimensions: 12,8x5,8x6,5mm; 3A; 125VAC; ON-(ON); SPDT; 0.44N; endurance: 1000000 cycles; operating temperature: -25°C+85°C

Parameters

Dimensions:	12,8x5,8x6,5mm
Force:	0,44N
Contacts rating:	3A 125VAC
Operating temperature (range):	-25°C ~ 85°C
Leads:	For PCB
Manufacturer:	Cherry
Switching method:	ON-(ON)

All parameters

Manufacturer:: Cherry Semiconductor Corporation Manufacturer part number: DG13-B3LA RoHS Case style: Rys.DG13-B3LA Datasheet

In stock:

55 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,4154	0,9901	0,8412	0,7703	0,7443

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	12,8x5,8x6,5mm
Force:	0,44N
Contacts rating:	3A 125VAC
Operating temperature (range):	-25°C ~ 85°C
Leads:	For PCB
Manufacturer:	Cherry
Switching method:	ON-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
