BS01GB SAB Dip-switch

Symbol Micros: PRZ Dip01su

63252

PRZ Dip01su

Contractor Symbol:

Case : Rys.dwsDIP1s

Datasheet

Technical drawing Add to favourites

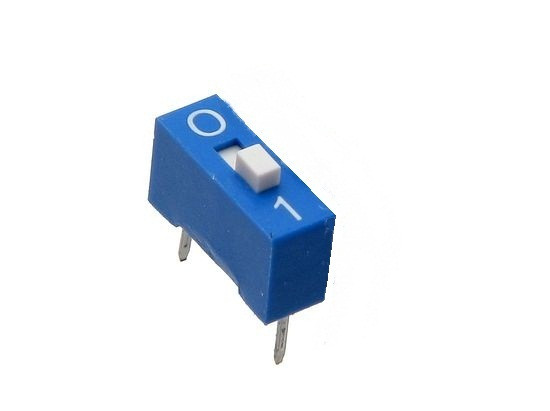

slide, 1 contact; THT; blue color; gold plating 1u", height 5.20mm + knob 1.10mm; eqiv. EDG101S

Parameters

Overall length:	3,54mm
Number of sections:	1
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Blue
Type of slider:	Raised
Mounting:	THT

All parameters

Manufacturer:: KAIFENG Manufacturer part number: KF1001-01P-R0GL-DFT-01B Red RoHS Case style: Rys.dwsDIP1s Datasheet

In stock:

460 pcs.

Quantity of pcs.	3+	10+	40+	120+	480+
Net price (EUR)	0,3778	0,2456	0,1809	0,1585	0,1457

Add to comparison tool Add inquiry (RFQ)

Packaging:
120/2400/4800 Quantity (multiple: 1)

- +

Manufacturer:: KAIFENG Manufacturer part number: KF1001-01P-R0FL-ON-01B RoHS Case style: Rys.dwsDIP1s Datasheet

In stock:

0 pcs.

Quantity of pcs.	3+	10+	40+	120+	480+
Net price (EUR)	0,3778	0,2456	0,1809	0,1585	0,1457

Add to comparison tool Add inquiry (RFQ)

Packaging:
120/2400/4800 Quantity (multiple: 1)

- +

• Parameters

Overall length:	3,54mm
Number of sections:	1
Manufacturer:	SAB
Mechanical durability:	5000 cycles
Colour:	Blue
Type of slider:	Raised
Mounting:	THT
Terminal pitch:	2,54mm
