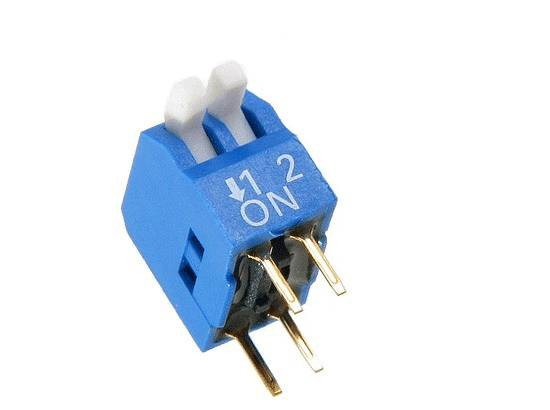

KF1002-02P-R3FLG-ON-02B KAIFENG Dip-switch

Symbol Micros: PRZ Dip02pr

17240

PRZ Dip02pr

Contractor Symbol:

Case : Rys.dwsDIP2p

Datasheet

Technical drawing Add to favourites

2 contacts; THT; red color; gold plating 1u"; height: 9.50mm; type: piano eqiv. APEM DP, ITT BP, CTS Elec. 194/195, DIPTRONICS DP, ECE EPA, Resonswitch RP

Parameters

Overall length:	6,65mm
Number of sections:	2
Manufacturer:	KAIFENG
Mechanical durability:	2000 cycles
Colour:	Red
Type of slider:	Piano
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Overall length:	6,65mm
Number of sections:	2
Manufacturer:	KAIFENG
Mechanical durability:	2000 cycles
Colour:	Red
Type of slider:	Piano
Mounting:	THT
Terminal pitch:	2,54mm
