KF1001-02P-R0FL-ON-01B KAIFENG

Symbol Micros: PRZ Dip02sr

8928

PRZ Dip02sr

Contractor Symbol:

Case : Rys.dwsDIP2sr

Datasheet

Technical drawing Add to favourites

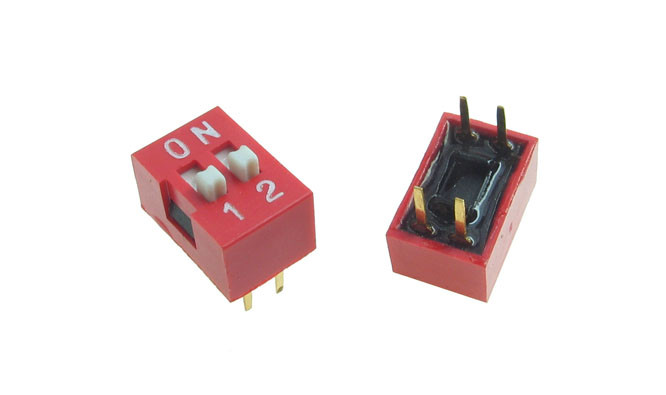

dip-switch, 2 contacts, red color, height 5.30mm + knob 1.20mm

Parameters

Overall length:	6,50mm
Manufacturer:	KAIFENG
Number of sections:	2
Colour:	Red
Mechanical durability:	2000 cycles
Type of slider:	Raised
Mounting:	THT

All parameters

Manufacturer:: KAIFENG Manufacturer part number: KF1001-02P-R0FL-ON-01B Red RoHS Case style: Rys.dwsDIP2sr Datasheet

In stock:

16 pcs.

Quantity of pcs.	5+	20+	70+	350+	1400+
Net price (EUR)	0,2537	0,1394	0,0983	0,0784	0,0725

Add to comparison tool Add inquiry (RFQ)

Packaging:
70/1400/5600 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-02-01

Quantity of pcs.: 11200





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-30

Quantity of pcs.: 1960

• Parameters

Overall length:	6,50mm
Manufacturer:	KAIFENG
Number of sections:	2
Colour:	Red
Mechanical durability:	2000 cycles
Type of slider:	Raised
Mounting:	THT
Terminal pitch [m]:	2,54mm
