KF1001-05P-R0GL-DFT-01B KAIFENG

Symbol Micros: PRZ Dip05sr

9990

PRZ Dip05sr

Contractor Symbol:

Case : Rys.dwsDIP5sr

Datasheet

Technical drawing Add to favourites

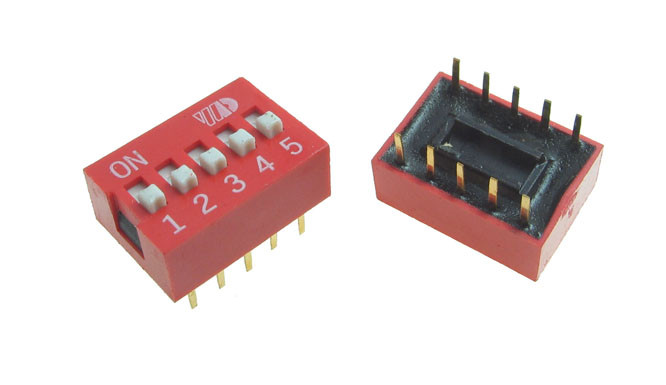

dip-switch, 5 contacts, red color, height 5.30mm + knob 1.20mm

Parameters

Overall length:	14,12mm
Manufacturer:	KAIFENG
Number of sections:	5
Colour:	Red
Mechanical durability:	2000 cycles
Type of slider:	Raised
Mounting:	THT

All parameters

Manufacturer:: KAIFENG Manufacturer part number: KF1001-05P-DFT-01B RoHS Case style: Rys.dwsDIP5sr Datasheet

In stock:

26 pcs.

Quantity of pcs.	3+	10+	33+	165+	660+
Net price (EUR)	0,4098	0,2686	0,2040	0,1692	0,1580

Add to comparison tool Add inquiry (RFQ)

Packaging:
33/660/2640 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-03-15

Quantity of pcs.: 2640

• Parameters

Overall length:	14,12mm
Manufacturer:	KAIFENG
Number of sections:	5
Colour:	Red
Mechanical durability:	2000 cycles
Type of slider:	Raised
Mounting:	THT
Terminal pitch [mm]:	2,54mm
