KF1001-08P-R0GL-DFT-01B KAIFENG

Symbol Micros: PRZ Dip08sr

8931

PRZ Dip08sr

Contractor Symbol:

Case : Rys.dwsDIP8sr

Datasheet

Technical drawing Add to favourites

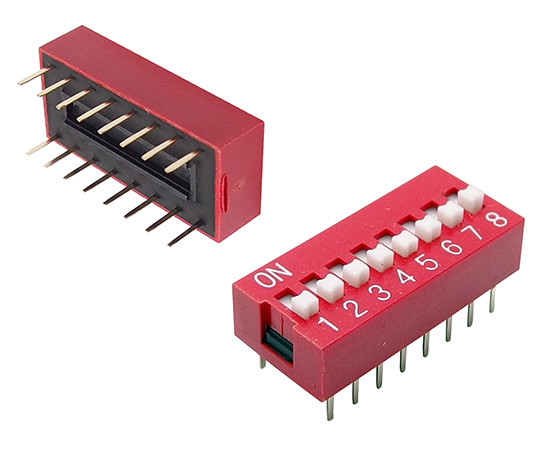

dip-switch, 8 contacts, red color, height 5.30mm + knob 1.20mm

Parameters

Overall length:	21,74mm
Number of sections:	8
Manufacturer:	KAIFENG
Mechanical durability:	2000 cycles
Colour:	Red
Type of slider:	Raised
Mounting:	THT

All parameters

Manufacturer:: KAIFENG Manufacturer part number: KF1001-08P-R0GL-DFT-01B Red RoHS Case style: Rys.dwsDIP8sr Datasheet

In stock:

11824 pcs.

Quantity of pcs.	2+	5+	21+	105+	420+
Net price (EUR)	0,4904	0,3547	0,2547	0,2104	0,1964

Add to comparison tool Add inquiry (RFQ)

Packaging:
21/420/1680 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1040-08RN Case style: Rys.dwsDIP8sr

External warehouse:

4956 pcs.

Quantity of pcs.	21+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1964

Add to comparison tool Add inquiry (RFQ)

Packaging:
21

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-05-20

Quantity of pcs.: 6720

• Parameters

Overall length:	21,74mm
Number of sections:	8
Manufacturer:	KAIFENG
Mechanical durability:	2000 cycles
Colour:	Red
Type of slider:	Raised
Mounting:	THT
Terminal pitch [m]:	2,54mm
